Part A A 120 kg box resting on a horizontal, frictionless surface is attached to a 5.00 kg weight by a thin, light wire

[answerhappygod]

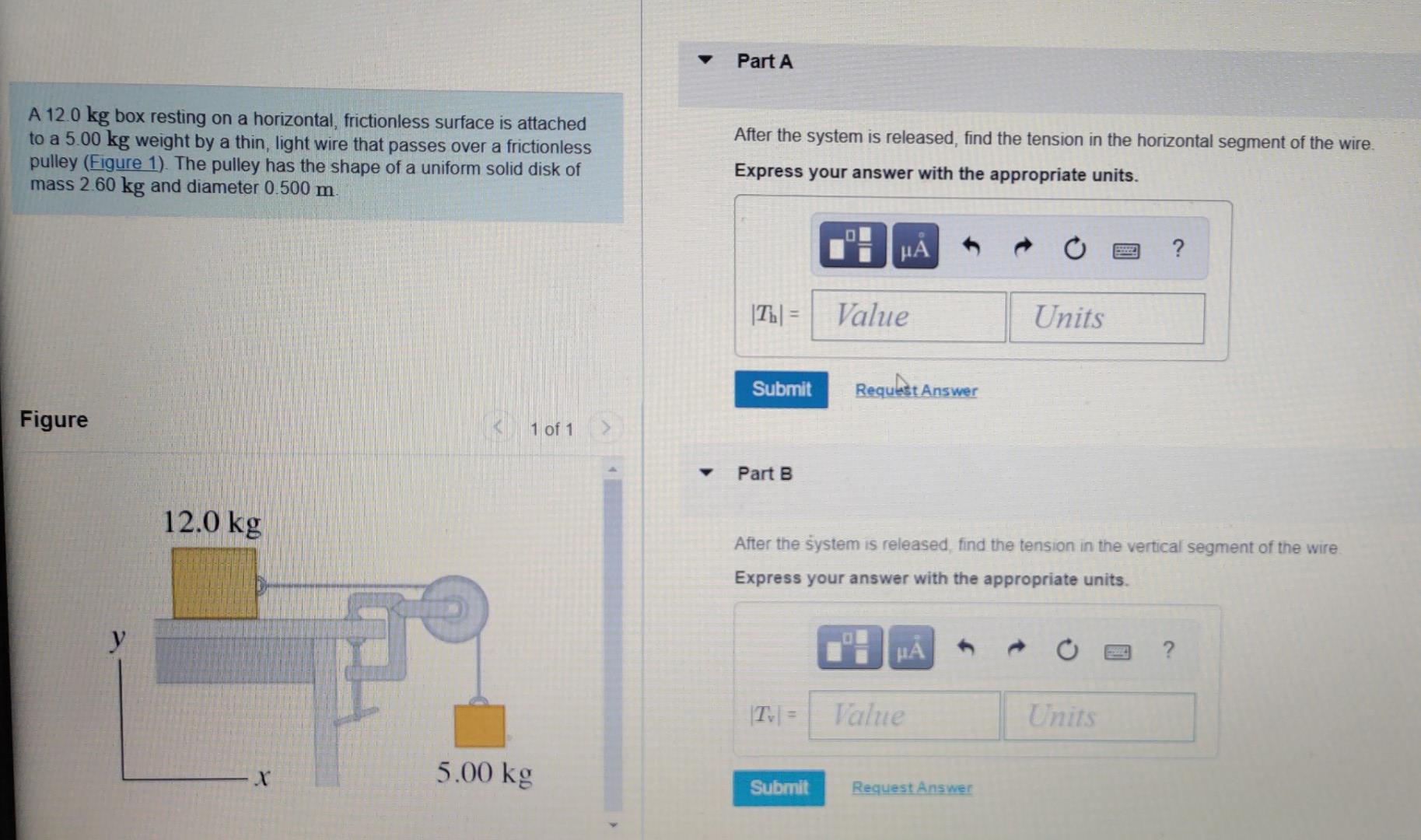

Part A A 120 Kg Box Resting On A Horizontal Frictionless Surface Is Attached To A 5 00 Kg Weight By A Thin Light Wire 1 (188.51 KiB) Viewed 135 times

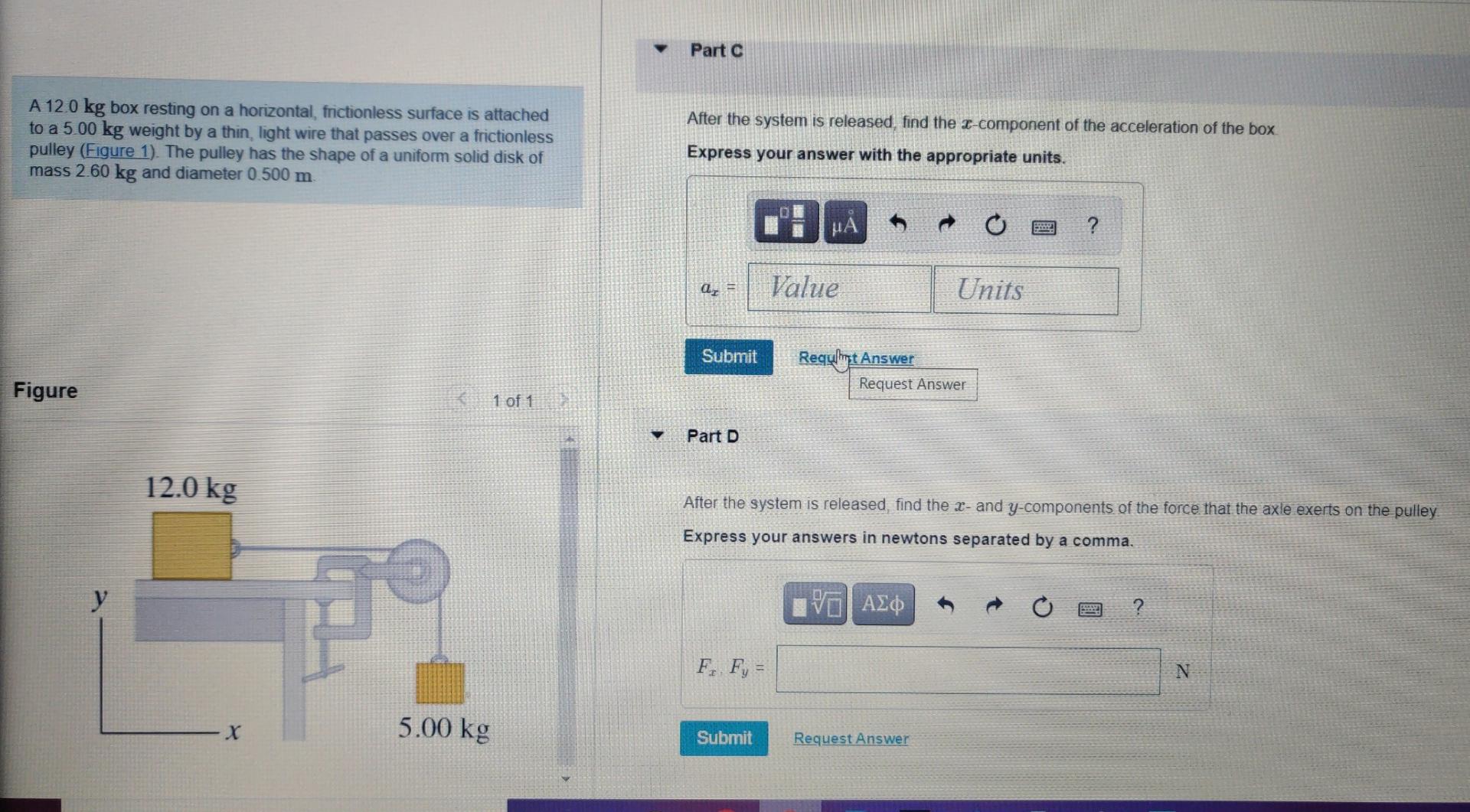

Part A A 120 Kg Box Resting On A Horizontal Frictionless Surface Is Attached To A 5 00 Kg Weight By A Thin Light Wire 2 (296.74 KiB) Viewed 135 times

Part A A 120 kg box resting on a horizontal, frictionless surface is attached to a 5.00 kg weight by a thin, light wire that passes over a frictionless pulley (Figure 1). The pulley has the shape of a uniform solid disk of mass 2 60 kg and diameter 0.500 m After the system is released, find the tension in the horizontal segment of the wire. Express your answer with the appropriate units. O HA ? 1T= Value Units Submit Request Answer Figure 1 of 1 Part B. 12.0 kg After the system is released find the tension in the vertical segment of the wire Express your answer with the appropriate units. y μΑ T = Valne Units .X 5.00 kg Submit Request Answer
Part 0 A 120 kg box resting on a horizontal, frictionless surface is attached to a 500 kg weight by a thin, light wire that passes over a frictionless pulley (Figure 1). The pulley has the shape of a uniform solid disk of mass 2.60 kg and diameter 0.500 m After the system is released, find the r-component of the acceleration of the box Express your answer with the appropriate units. μΑ ? ar Value Units Submit Regulligt Answer Request Answer Figure 1 of 1 Part D 12.0 kg After the system is released, find the x- and y-components of the force that the axle exerts on the pulley Express your answers in newtons separated by a comma. у ΟΙ ΑΣΦ ? F. Fy = N х 5.00 kg Submit Request Answer
