R1 10 Ω WW + VA 9V Loop 1 R2 522 12 11 junction a + 14 Loop 2 VB 6 V Loop 3 R4 15 Ω w R3 16 Ω 1. What is the equation us

Post by answerhappygod »

1
1 (41.15 KiB) Viewed 31 times

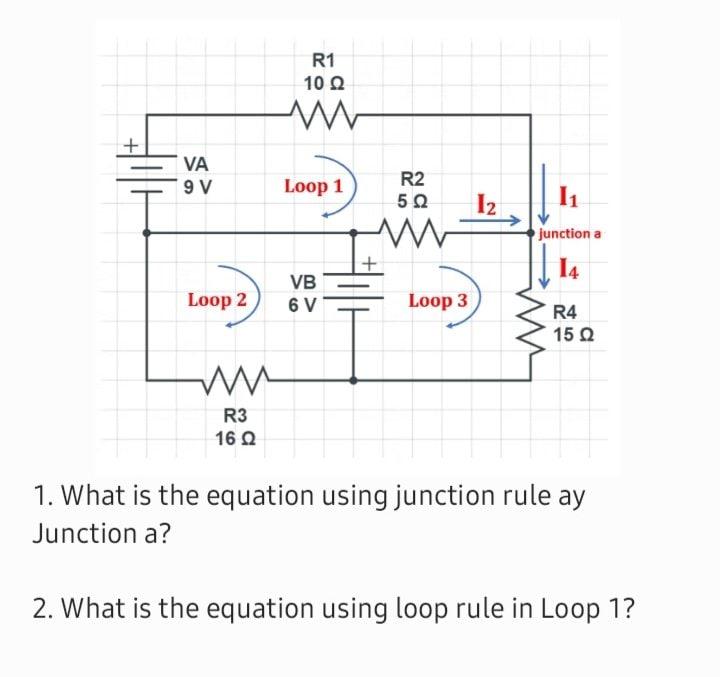

R1 10 Ω WW + VA 9V Loop 1 R2 522 12 11 junction a + 14 Loop 2 VB 6 V Loop 3 R4 15 Ω w R3 16 Ω 1. What is the equation using junction rule ay Junction a? 2. What is the equation using loop rule in Loop 1?
