2.) For the circuit below, determine the equivalent resistance of the entire circuit, the main current and the voltage d
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2.) For the circuit below, determine the equivalent resistance of the entire circuit, the main current and the voltage d

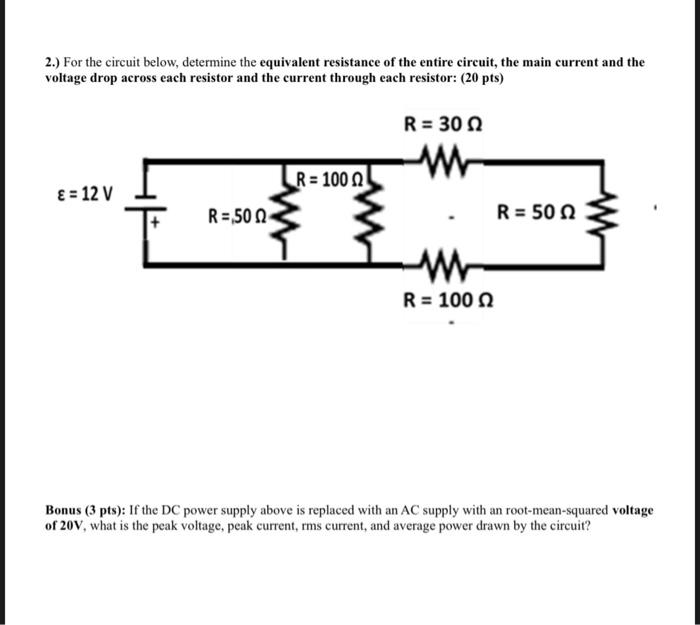

2.) For the circuit below, determine the equivalent resistance of the entire circuit, the main current and the voltage drop across each resistor and the current through each resistor: (20 pts) R = 300 W R=1000 ε = 12 V R=,500 R = 500 ww R = 1000 Bonus (3 pts): If the DC power supply above is replaced with an AC supply with an root-mean-squared voltage of 20V, what is the peak voltage, peak current, rms current, and average power drawn by the circuit?
