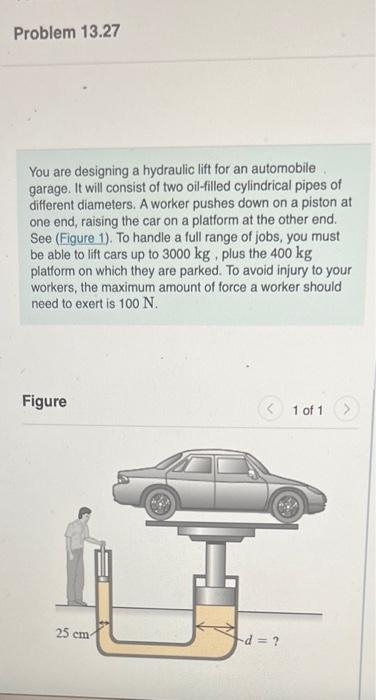

Problem 13.27 You are designing a hydraulic lift for an automobile garage. It will consist of two oil-filled cylindrical pipes of different diameters. A worker pushes down on a piston at one end, raising the car on a platform at the other end. See (Figure 1). To handle a full range of jobs, you must be able to lift cars up to 3000 kg , plus the 400 kg platform on which they are parked. To avoid injury to your workers, the maximum amount of force a worker should need to exert is 100 N. Figure 1 of 1 25 cm Ed = ?

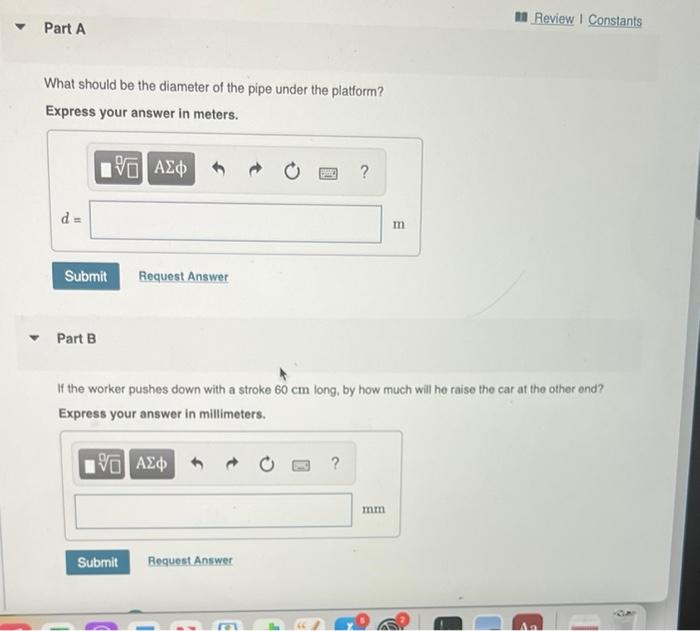

Review Constants Part A What should be the diameter of the pipe under the platform? Express your answer in meters. D ΑΣΦ ? da m Submit Request Answer Part B If the worker pushes down with a stroke 60 cm long, by how much will he raise the car at the other end? Express your answer in millimeters. ΡΙ ΑΣΦ ? mm Submit Request Answer
