12 F бір A В 2. Consider the connections shown in figure below: (a) Find the capacitance between the points A and B. (b)

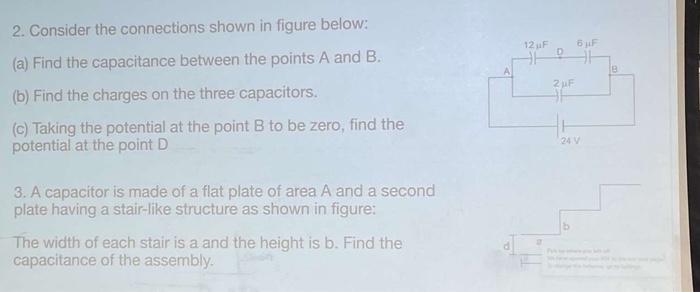

12 F бір A В 2. Consider the connections shown in figure below: (a) Find the capacitance between the points A and B. (b) Find the charges on the three capacitors. (C) Taking the potential at the point B to be zero, find the potential at the point D 2 SE 24V 3. A capacitor is made of a flat plate of area A and a second plate having a stair-like structure as shown in figure: The width of each stair is a and the height is b. Find the capacitance of the assembly
