1. A Munchlax is standing on the brick wall that is placed on top of a 6-meter beam. Draw an M-V diagram for the beam. M

Post by answerhappygod »

1 A Munchlax Is Standing On The Brick Wall That Is Placed On Top Of A 6 Meter Beam Draw An M V Diagram For The Beam M 1
1 A Munchlax Is Standing On The Brick Wall That Is Placed On Top Of A 6 Meter Beam Draw An M V Diagram For The Beam M 1 (34.18 KiB) Viewed 28 times

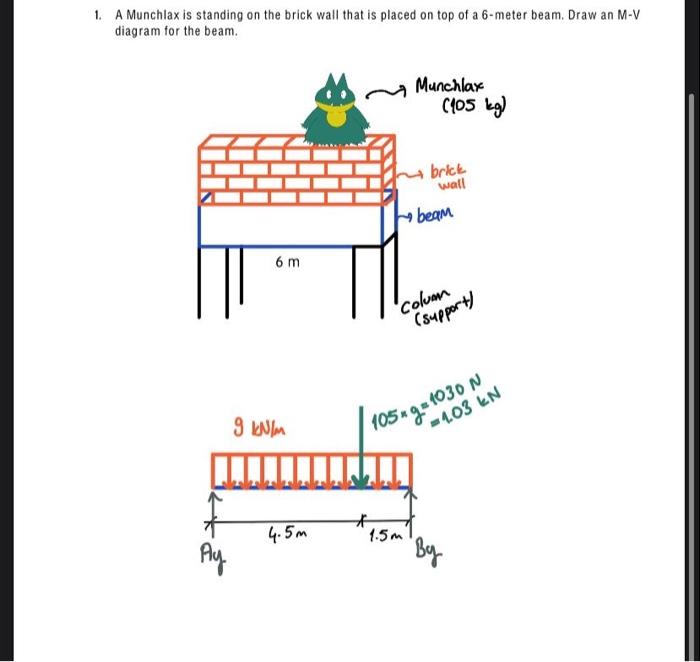

1. A Munchlax is standing on the brick wall that is placed on top of a 6-meter beam. Draw an M-V diagram for the beam. Munchlax C105 kg) brick watt h beam 6 m colum (support) 9 INM 105ng=1030 N -1.03 EN 4.5m 1.5m Ay "By
