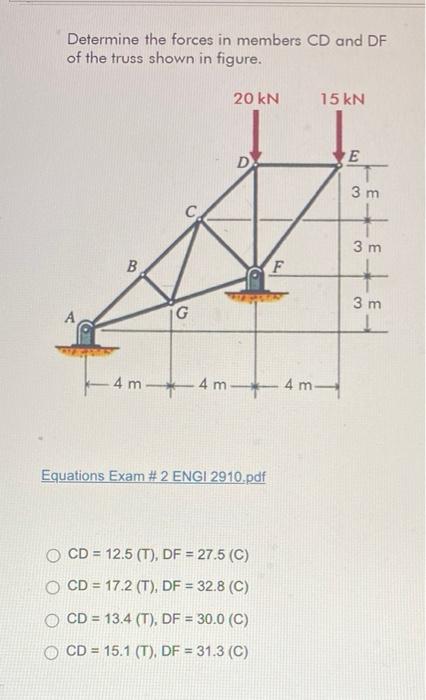

Determine the forces in members CD and DF of the truss shown in figure. 20 kN 15 kN D Ε 3 m 3 m B F + 3 m А G 4m- 4m-4m
