The T-shaped structure consists of two rigidly connected bars ABC and BD, each having mass m = 10 kg and length 1 = 1 m.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The T-shaped structure consists of two rigidly connected bars ABC and BD, each having mass m = 10 kg and length 1 = 1 m.

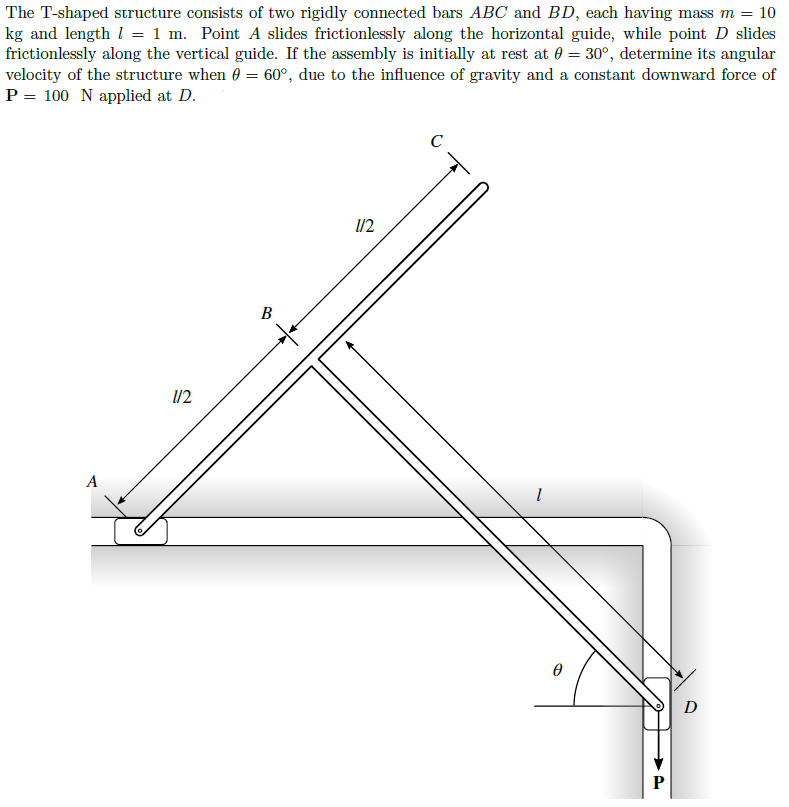

The T-shaped structure consists of two rigidly connected bars ABC and BD, each having mass m = 10 kg and length 1 = 1 m. Point A slides frictionlessly along the horizontal guide, while point D slides frictionlessly along the vertical guide. If the assembly is initially at rest at 0 = 30°, determine its angular velocity of the structure when 6 = 60°, due to the influence of gravity and a constant downward force of P= 100 N applied at D. с 1/2 B 1/2 A Ꮎ D P
