A simply supported beam 100" long is loaded as shown below. A notch of radius 0.1" is located at section A-A. Loading Ma

Post by answerhappygod »

A Simply Supported Beam 100 Long Is Loaded As Shown Below A Notch Of Radius 0 1 Is Located At Section A A Loading Ma 1
A Simply Supported Beam 100 Long Is Loaded As Shown Below A Notch Of Radius 0 1 Is Located At Section A A Loading Ma 1 (43 KiB) Viewed 16 times

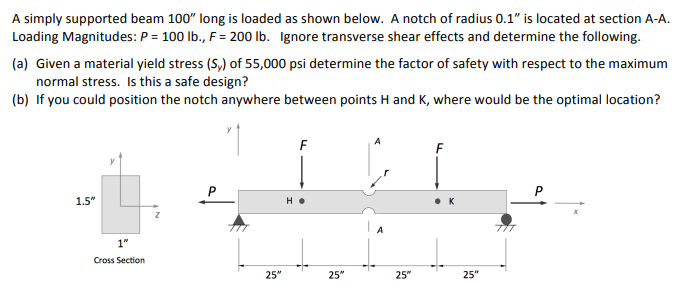

A simply supported beam 100" long is loaded as shown below. A notch of radius 0.1" is located at section A-A. Loading Magnitudes: P = 100 lb., F= 200 lb. Ignore transverse shear effects and determine the following. (a) Given a material yield stress (Sy) of 55,000 psi determine the factor of safety with respect to the maximum normal stress. Is this a safe design? (b) If you could position the notch anywhere between points H and K, where would be the optimal location? F F P P 1.5" H. 1" Cross Section 25 25" 25" 25" "
