S-2 Problem 3. (30 points) Consider the closed-loop system shown in R(S) C(s) the figure. Determine the range of K (s +

Post by answerhappygod »

S 2 Problem 3 30 Points Consider The Closed Loop System Shown In R S C S The Figure Determine The Range Of K S 1
S 2 Problem 3 30 Points Consider The Closed Loop System Shown In R S C S The Figure Determine The Range Of K S 1 (124.55 KiB) Viewed 15 times

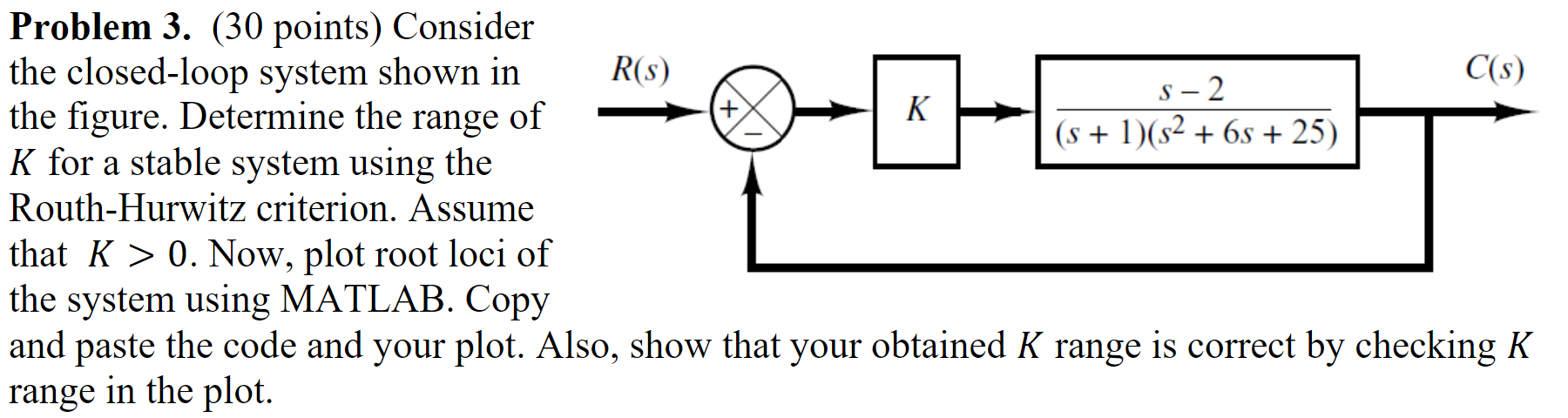

S-2 Problem 3. (30 points) Consider the closed-loop system shown in R(S) C(s) the figure. Determine the range of K (s + 1)(52 +65 +25) K for a stable system using the Routh-Hurwitz criterion. Assume that K > 0. Now, plot root loci of the system using MATLAB. Copy and paste the code and your plot. Also, show that your obtained K range is correct by checking K range in the plot. -0-0-
