The T-shaped structure consists of two rigidly connected bars ABC and BD, each having mass m = 10 kg and length 1 = 1 m.

[answerhappygod]

The T Shaped Structure Consists Of Two Rigidly Connected Bars Abc And Bd Each Having Mass M 10 Kg And Length 1 1 M 1 (56.65 KiB) Viewed 19 times

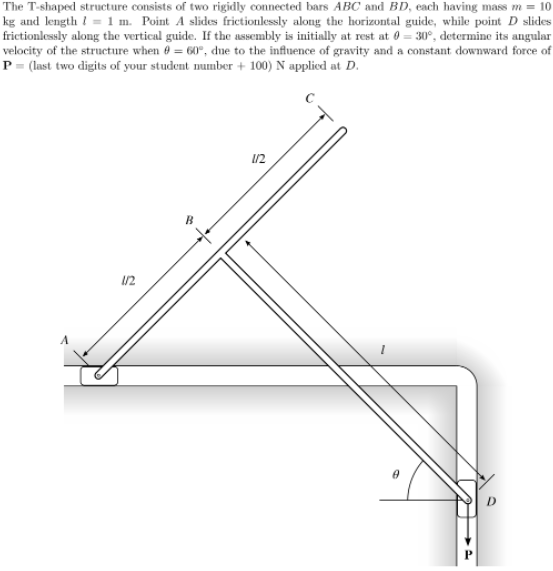

The T-shaped structure consists of two rigidly connected bars ABC and BD, each having mass m = 10 kg and length 1 = 1 m. Point A slides frictionlessly along the horizontal guide, while point D slides frictionlessly along the vertical guide. If the assembly is initially at rest at 0 = 30°, determine its angular velocity of the structure when 6 = 60°, due to the influence of gravity and a constant downward force of P = (last two digits of your student number + 100) N applied at D. 1/2 1/2
