Problem 4: At the instant shown where 0 - 60°, piston C is traveling at 3.2 m/s to the left. Determine the angular speed

Post by answerhappygod »

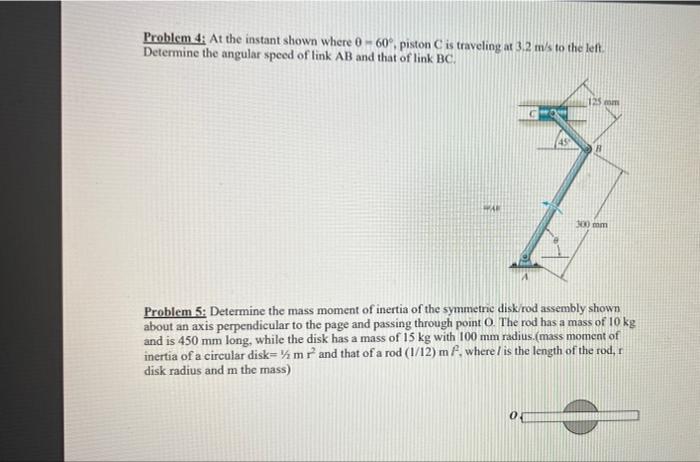

Problem 4 At The Instant Shown Where 0 60 Piston C Is Traveling At 3 2 M S To The Left Determine The Angular Speed 1
Problem 4 At The Instant Shown Where 0 60 Piston C Is Traveling At 3 2 M S To The Left Determine The Angular Speed 1 (43.72 KiB) Viewed 35 times
Problem 4: At the instant shown where 0 - 60°, piston C is traveling at 3.2 m/s to the left. Determine the angular speed of link AB and that of link BC. 40 WAB 100 mm A Problem 5: Determine the mass moment of inertia of the symmetric disk/rod assembly shown about an axis perpendicular to the page and passing through point o The rod has a mass of 10 kg and is 450 mm long, while the disk has a mass of 15 kg with 100 mm radius.(mass moment of inertia of a circular disk=" mr and that of a rod (1/12) mf, where is the length of the rod, disk radius and m the mass)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
