A center-cracked plate of AISI 1144 steel has dimensions, as defined in Fig. 8.12(a), of b = 50.0 and t = 5.50 mm, and i

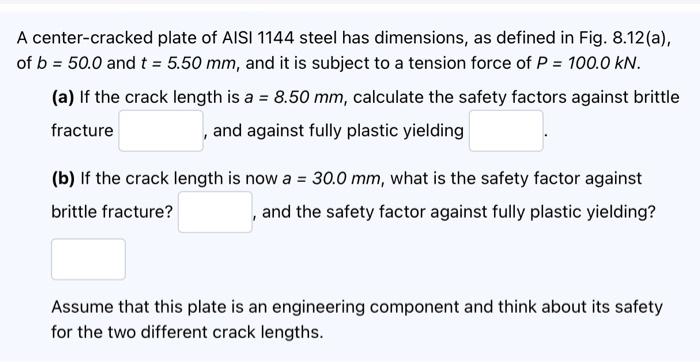

A center-cracked plate of AISI 1144 steel has dimensions, as defined in Fig. 8.12(a), of b = 50.0 and t = 5.50 mm, and it is subject to a tension force of P = 100.0 KN. (a) If the crack length is a = 8.50 mm, calculate the safety factors against brittle fracture and against fully plastic yielding (b) If the crack length is now a = 30.0 mm, what is the safety factor against brittle fracture? and the safety factor against fully plastic yielding? Assume that this plate is an engineering component and think about its safety for the two different crack lengths.
