In The Four Bar Linkage Shown Link Oa Has Angular Velocity Of Wo And Angular Acceleration Co Determine A Angular Vel 1 (169.64 KiB) Viewed 24 times
ϴ (degrees)=200
w0 (rad/s)=12 CCW
α0 (rad/s2)=0

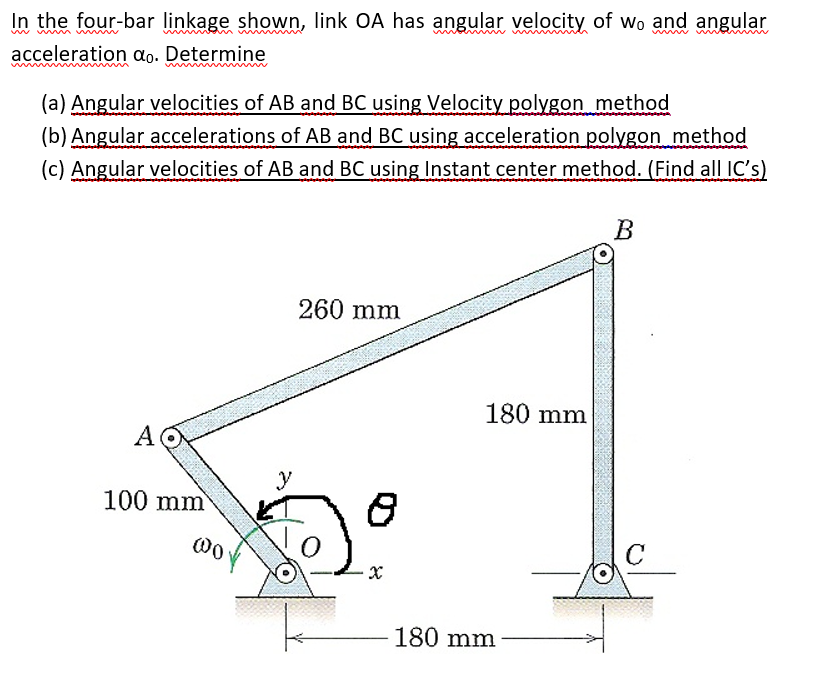

In the four-bar linkage shown, link OA has angular velocity of wo and angular acceleration co. Determine (a) Angular velocities of AB and BC using Velocity polygon method (b) Angular accelerations of AB and BC using acceleration polygon method (c) Angular velocities of AB and BC using Instant center method. (Find all IC's) B 260 mm 180 mm A y 100 mm o 00 180 mm
