- The Figure Below Illustrates A Thin Plate Of Thickness T An Approximate Displacement Field Which Accounts For Displace 1 (37.73 KiB) Viewed 32 times
The figure below illustrates a thin plate of thickness t. An approximate displacement field, which accounts for displace
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The figure below illustrates a thin plate of thickness t. An approximate displacement field, which accounts for displace

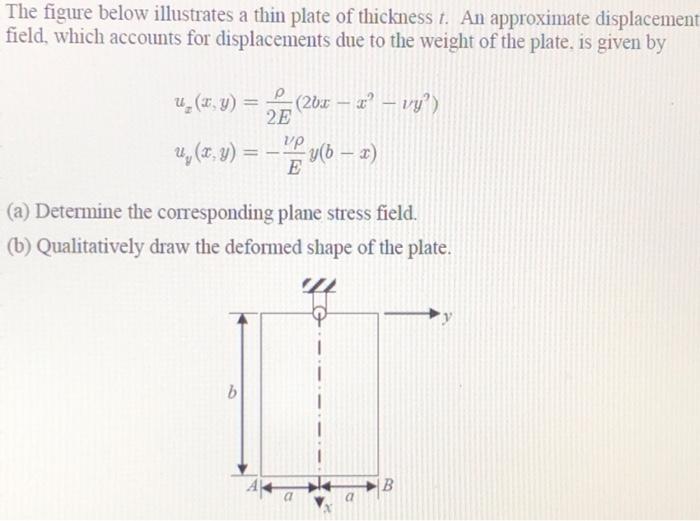

The figure below illustrates a thin plate of thickness t. An approximate displacement field, which accounts for displacements due to the weight of the plate, is given by р u_(XY) ) = 2 (20x – <? - vy?) 2, (3, 3) = 16 – 1) vр E (a) Determine the corresponding plane stress field. (b) Qualitatively draw the deformed shape of the plate. B B a
