A beam, comprising a 360UB44.7 (Grade 300plus steel) section, spans 5.2m and supports two substantial concentrated loads

[answerhappygod]

A Beam Comprising A 360ub44 7 Grade 300plus Steel Section Spans 5 2m And Supports Two Substantial Concentrated Loads 1 (165.43 KiB) Viewed 25 times

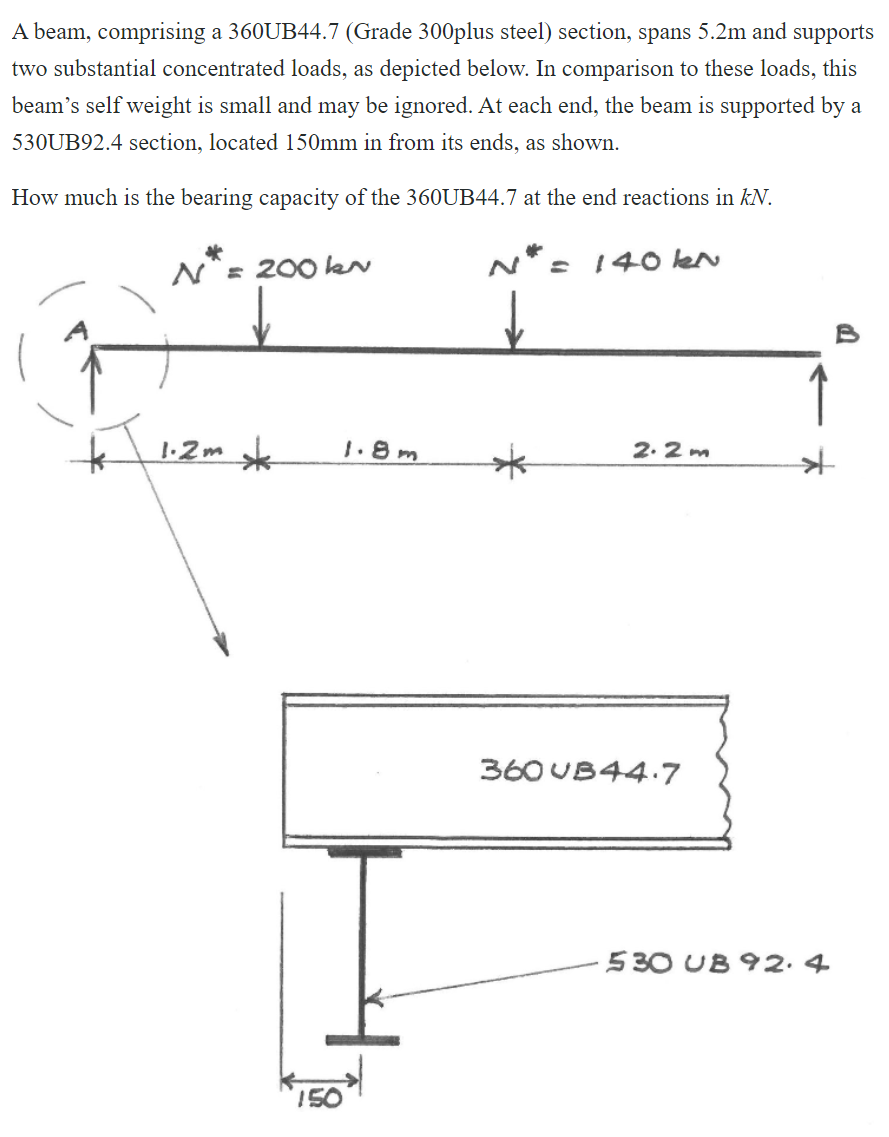

A beam, comprising a 360UB44.7 (Grade 300plus steel) section, spans 5.2m and supports two substantial concentrated loads, as depicted below. In comparison to these loads, this beam's self weight is small and may be ignored. At each end, the beam is supported by a 530UB92.4 section, located 150mm in from its ends, as shown. How much is the bearing capacity of the 360UB44.7 at the end reactions in kN. N = 200 kn N = 140 kn 1.2m * 1-2 1.8m 2.2 m * 360 VB44.7 530 UB 92.4 150
