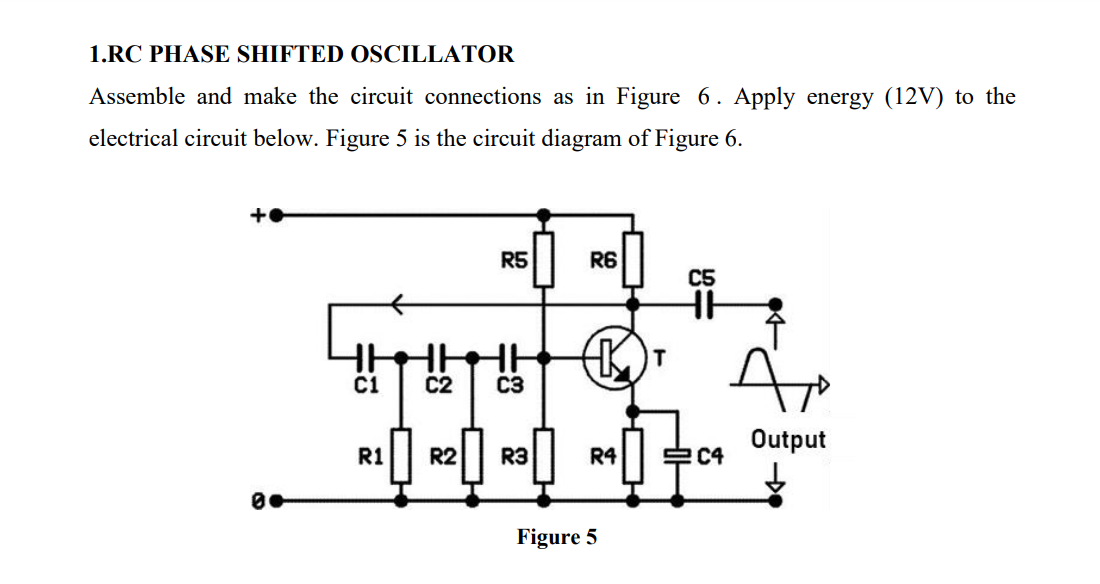

1.RC PHASE SHIFTED OSCILLATOR Assemble and make the circuit connections as in Figure 6. Apply energy (12V) to the electrical circuit below. Figure 5 is the circuit diagram of Figure 6. R5 R6 C5 HH 米 C1 C2 8 СЗ A Output R1 R2 R3 R4 C4 Figure 5
+ 12V RS D.Oooo R6 RC CS 108 CHI D C! Inf C2 Inf C3 In C616 R4 566 SCOPE RC PHASE EXPERIMENT 1 SHIFT OSCILLATOR
1- Measure the output signal as you see on the oscilloscope. Draw the signal below and write its frequency, period, duty cycle and Vpp. V.V. 2- Calculate the circuit frequency according to the used element values. Compare it to the value you read from the oscilloscope.
