4.COLPITS OSCILLATOR Assemble and make the circuit connections as in Figure 13. Apply energy (12V) to the electrical cir

[answerhappygod]

4 Colpits Oscillator Assemble And Make The Circuit Connections As In Figure 13 Apply Energy 12v To The Electrical Cir 1 (74.64 KiB) Viewed 36 times

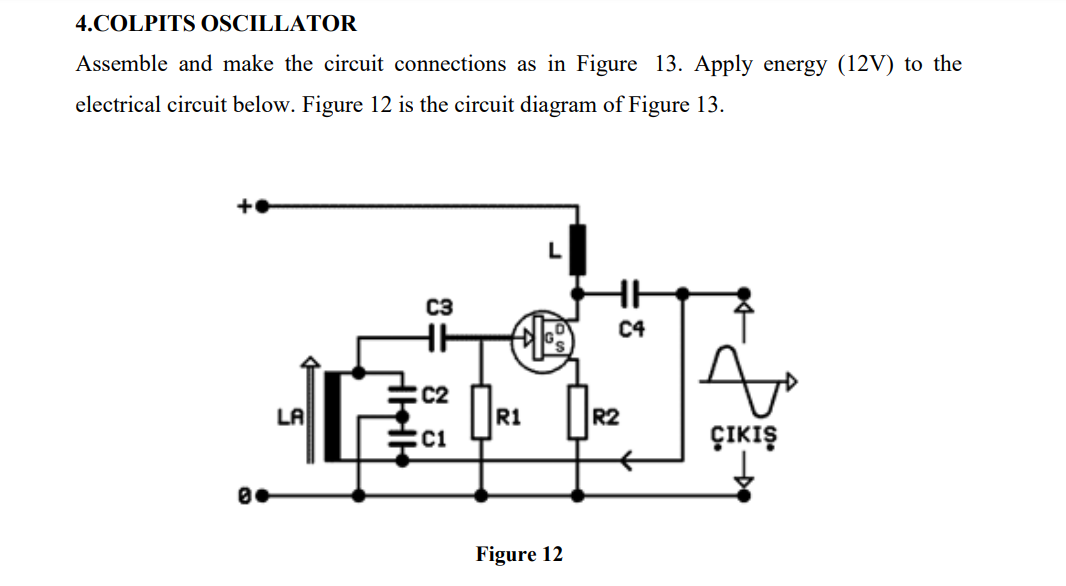

4.COLPITS OSCILLATOR Assemble and make the circuit connections as in Figure 13. Apply energy (12V) to the electrical circuit below. Figure 12 is the circuit diagram of Figure 13. + C3 C4 4109 C2 A LA HH R1 R2 C1 ÇIKIŞ . Figure 12
CH 160 0000.0 L 1801 + 12V C3 47 54 J109 ERI CI 100F SCOPE EXPERIMENT 4 COLPITTS OSCILLATOR
1- Measure the output signal as you see on the oscilloscope. Draw the signal below and write its frequency, period, duty cycle and Vpp. V., V. - 2- Calculate the output signal frequency. Compare it to the value you read from the oscilloscope.
