For the bridge rectifier circuit shown in the Figure, assuming practical diodes, the peak value of the output voltage ac

Post by answerhappygod »

For The Bridge Rectifier Circuit Shown In The Figure Assuming Practical Diodes The Peak Value Of The Output Voltage Ac 1
For The Bridge Rectifier Circuit Shown In The Figure Assuming Practical Diodes The Peak Value Of The Output Voltage Ac 1 (18.98 KiB) Viewed 48 times

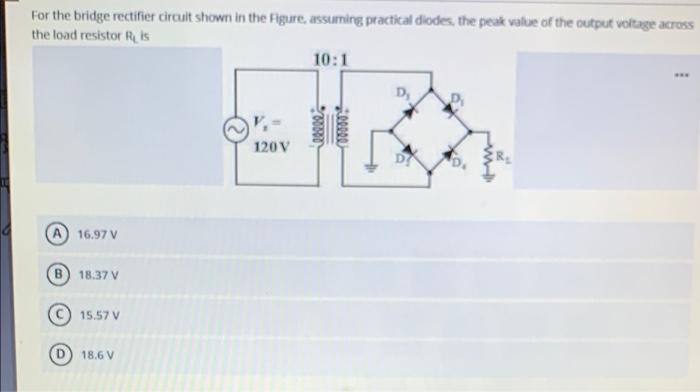

For the bridge rectifier circuit shown in the Figure, assuming practical diodes, the peak value of the output voltage across the load resistor Reis 10:1 D 120 V D? 16.97 V 18.37 V 15.57 V 18,6 V
