Assuming ideal diode the voltage across the resistor R2 in the circuit shown in the Figure is: R E, = +12V 0 win 2.2kΩ R

Post by answerhappygod »

1
1 (64.37 KiB) Viewed 41 times
2
2 (98.91 KiB) Viewed 41 times
Assuming ideal diode the voltage across the resistor R2 in the circuit shown in the Figure is: R E, = +12V 0 win 2.2kΩ R,Σ1.8kΩ : E2 = +4V A 4.0 V B 7.6 V 3.6 V D 4.4 V

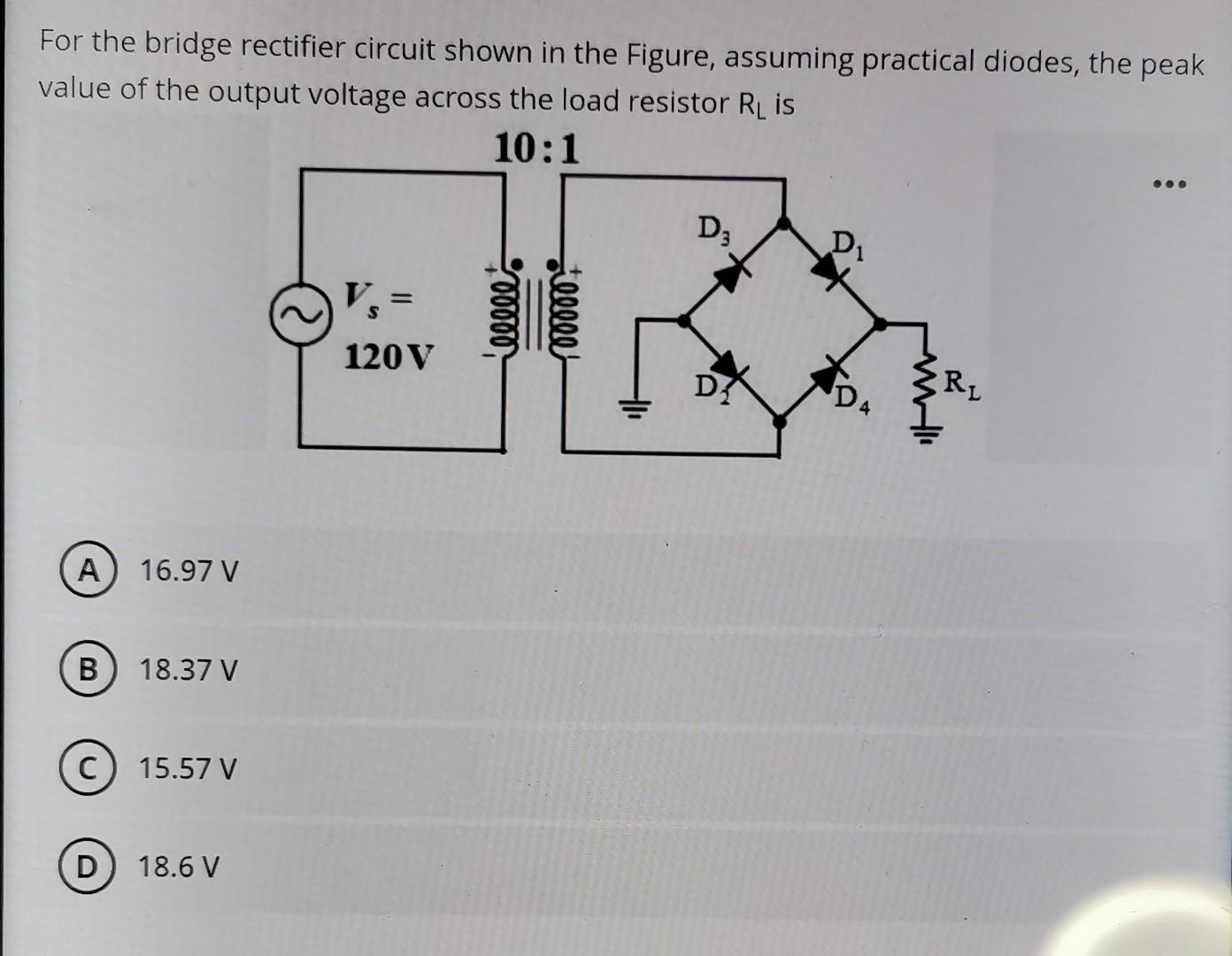

For the bridge rectifier circuit shown in the Figure, assuming practical diodes, the peak value of the output voltage across the load resistor RL is 10:1 .. D3 Di V,= = 00000, leelle 120V D RI A 16.97 V B 18.37 V 15.57 V D 18.6 V
