d) For the power amplifier shown below, calculate: i) Po(ac) ii) P (de) iii) n % iv) Power dissipated by both output tra

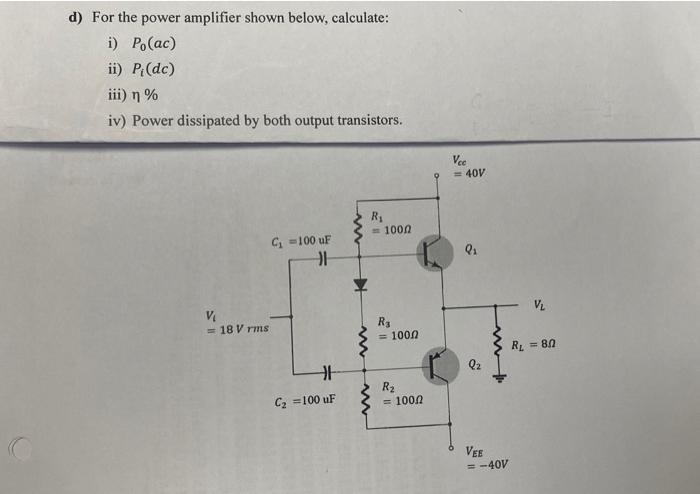

d) For the power amplifier shown below, calculate: i) Po(ac) ii) P (de) iii) n % iv) Power dissipated by both output transistors. Vec 40V R; 1000 G = 100 uF 11 01 K V = 18 V rms Rg = 1000 } RL = 80 } } Q2 카 C2 =100 uF R2 = 1000 VEE = -40V
