Control logic is renuired for a Drinks vending machine. Each drink costs 50 penc 1 the machine accepts 10p, 20p and 50p

[answerhappygod]

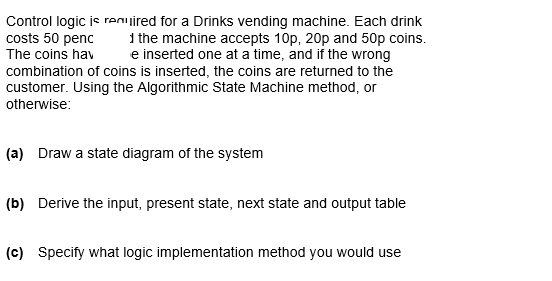

Control Logic Is Renuired For A Drinks Vending Machine Each Drink Costs 50 Penc 1 The Machine Accepts 10p 20p And 50p 1 (13.59 KiB) Viewed 28 times

Control logic is renuired for a Drinks vending machine. Each drink costs 50 penc 1 the machine accepts 10p, 20p and 50p coins. The coins hav e inserted one at a time, and if the wrong combination of coins is inserted, the coins are returned to the customer. Using the Algorithmic State Machine method, or otherwise (a) Draw a state diagram of the system (b) Derive the input, present state, next state and output table (c) Specify what logic implementation method you would use
