Consider the following noise model for a simple resistive voltage divider: Vi=+0V - www . Vo m2 R₂ where R1 = 6.1 kOhms

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Consider the following noise model for a simple resistive voltage divider: Vi=+0V - www . Vo m2 R₂ where R1 = 6.1 kOhms

Post by answerhappygod »

Consider The Following Noise Model For A Simple Resistive Voltage Divider Vi 0v Www Vo M2 R Where R1 6 1 Kohms 1
Consider The Following Noise Model For A Simple Resistive Voltage Divider Vi 0v Www Vo M2 R Where R1 6 1 Kohms 1 (42.31 KiB) Viewed 33 times

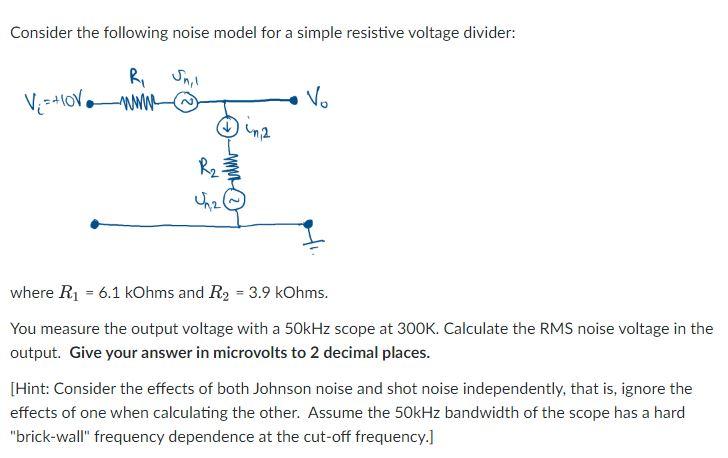

Consider the following noise model for a simple resistive voltage divider: Vi=+0V - www . Vo m2 R₂ where R1 = 6.1 kOhms and R2 = 3.9 kOhms. You measure the output voltage with a 50kHz scope at 300K. Calculate the RMS noise voltage in the output. Give your answer in microvolts to 2 decimal places. [Hint: Consider the effects of both Johnson noise and shot noise independently, that is, ignore the effects of one when calculating the other. Assume the 50kHz bandwidth of the scope has a hard "brick-wall" frequency dependence at the cut-off frequency.]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
Top
Post Reply

Return to “Archived Questions & Answers”
