Subject Course: Electronics Circuit Analysis and Design

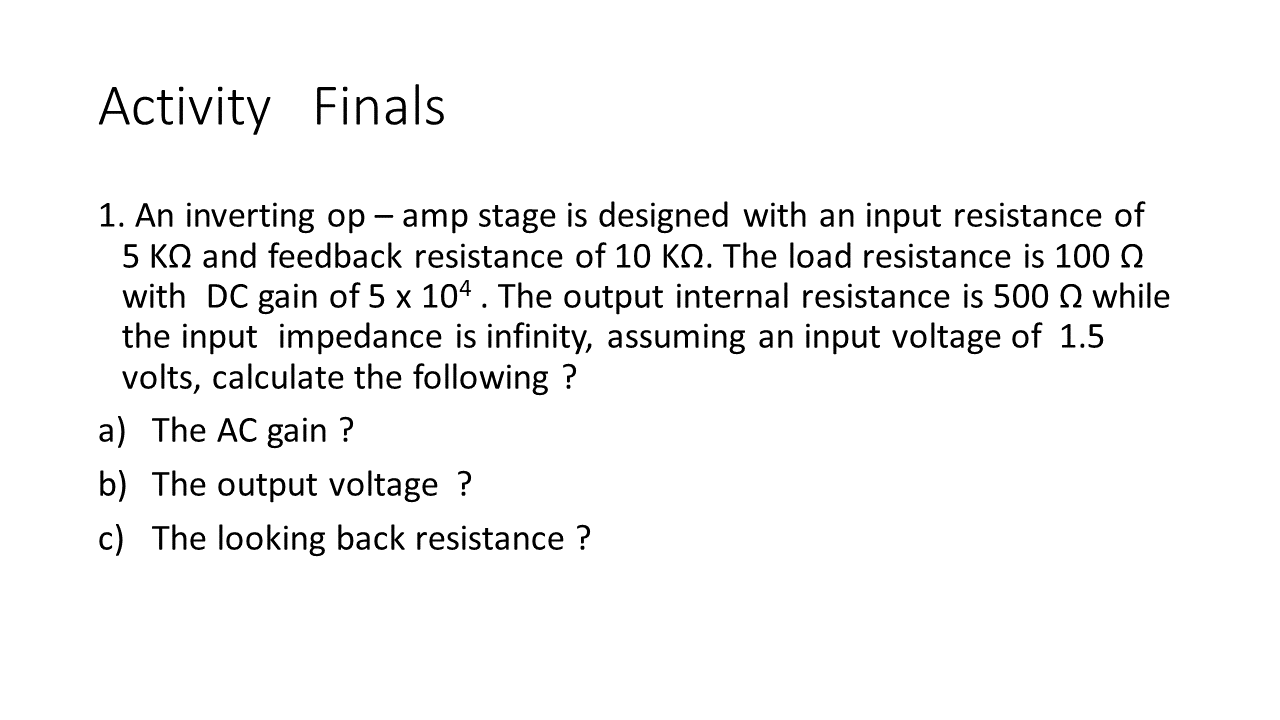

Activity Finals 1. An inverting op - amp stage is designed with an input resistance of 5 KQ and feedback resistance of 10 KS2. The load resistance is 100 12 with DC gain of 5 x 104. The output internal resistance is 500 12 while the input impedance is infinity, assuming an input voltage of 1.5 volts, calculate the following ? a) The AC gain ? b) The output voltage ? c) The looking back resistance ?
