Consider eliminating the effect of tpd by using a typical dual flip-flop synchronizer as shown below. Assuming all flip-

[answerhappygod]

Consider Eliminating The Effect Of Tpd By Using A Typical Dual Flip Flop Synchronizer As Shown Below Assuming All Flip 1 (37.23 KiB) Viewed 30 times

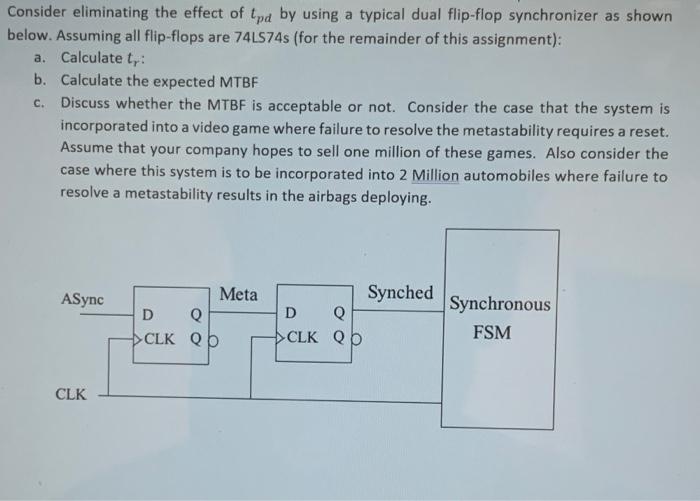

Consider eliminating the effect of tpd by using a typical dual flip-flop synchronizer as shown below. Assuming all flip-flops are 74LS74s (for the remainder of this assignment): a. Calculate to: b. Calculate the expected MTBF c. Discuss whether the MTBF is acceptable or not. Consider the case that the system is incorporated into a video game where failure to resolve the metastability requires a reset. Assume that your company hopes to sell one million of these games. Also consider the case where this system is to be incorporated into 2 Million automobiles where failure to resolve a metastability results in the airbags deploying. ASync Meta D Q >CLK QE D Q >CLK 0 Synched Synchronous FSM CLK
