3. [20 marks] The load Z. shown in figure below consists of a 10-0 resistor in series with a 0.1 H inductor. Assuming w=

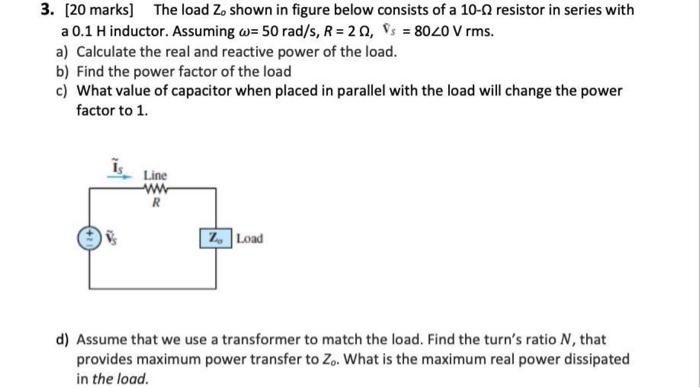

3. [20 marks] The load Z. shown in figure below consists of a 10-0 resistor in series with a 0.1 H inductor. Assuming w= 50 rad/s, R = 2n, Vs = 8020 Vrms. a) Calculate the real and reactive power of the load. b) Find the power factor of the load c) What value of capacitor when placed in parallel with the load will change the power factor to 1. Line w R Z. Load d) Assume that we use a transformer to match the load. Find the turn's ratio N, that provides maximum power transfer to Z. What is the maximum real power dissipated in the load.
