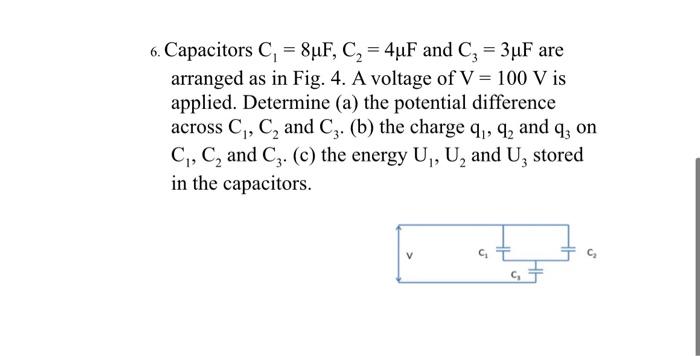

- 6 Capacitors C 8uf C2 4uf And C 3uf Are Arranged As In Fig 4 A Voltage Of V 100 V Is Applied Determine A 1 (24.83 KiB) Viewed 18 times
6. Capacitors C, = 8uF, C2 = 4uF and C; = 3uF are arranged as in Fig. 4. A voltage of V = 100 V is applied. Determine (a
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
6. Capacitors C, = 8uF, C2 = 4uF and C; = 3uF are arranged as in Fig. 4. A voltage of V = 100 V is applied. Determine (a
6. Capacitors C, = 8uF, C2 = 4uF and C; = 3uF are arranged as in Fig. 4. A voltage of V = 100 V is applied. Determine (a) the potential difference across C, C, and Cz. (b) the charge q, q, and q; on C, C, and Cz. (c) the energy U,, U, and U, stored in the capacitors. GI
