Q3] A pendulum of length L = 1.0 meter and bob with mass m = 1.0 kg is released from rest at an angle = 30° from the ver

[answerhappygod]

Q3 A Pendulum Of Length L 1 0 Meter And Bob With Mass M 1 0 Kg Is Released From Rest At An Angle 30 From The Ver 1 (33.17 KiB) Viewed 21 times

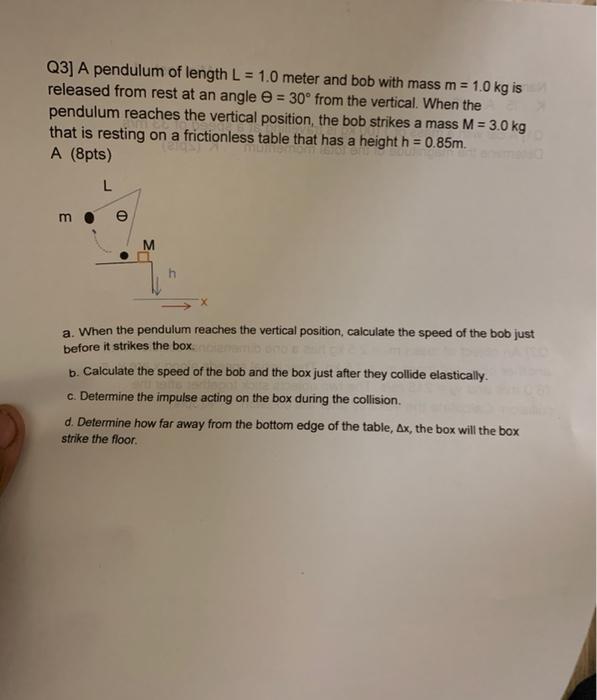

Q3] A pendulum of length L = 1.0 meter and bob with mass m = 1.0 kg is released from rest at an angle = 30° from the vertical. When the pendulum reaches the vertical position, the bob strikes a mass M = 3.0 kg that is resting on a frictionless table that has a height h = 0.85m. A (8pts) L e M a. When the pendulum reaches the vertical position, calculate the speed of the bob just before it strikes the box b. Calculate the speed of the bob and the box just after they collide elastically c. Determine the impulse acting on the box during the collision. d. Determine how far away from the bottom edge of the table, Ax, the box will the box strike the floor.
