5p Draw circuit diagram of circuit same as in the experiment with a 9 V battery and resistors (Set resistance to Student

Post by answerhappygod »

5p Draw Circuit Diagram Of Circuit Same As In The Experiment With A 9 V Battery And Resistors Set Resistance To Student 1

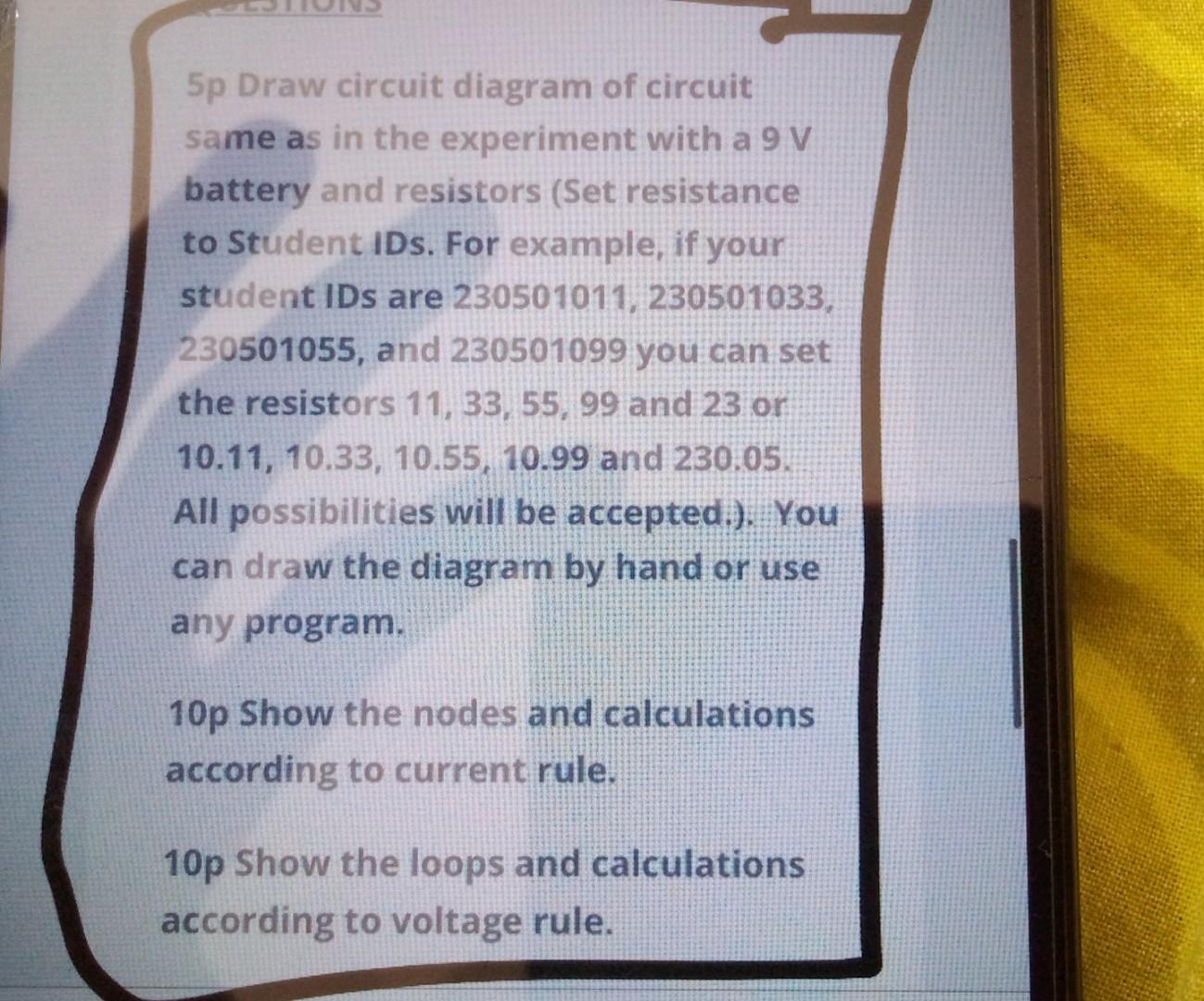

5p Draw Circuit Diagram Of Circuit Same As In The Experiment With A 9 V Battery And Resistors Set Resistance To Student 1 (187.16 KiB) Viewed 19 times
5p Draw circuit diagram of circuit same as in the experiment with a 9 V battery and resistors (Set resistance to Student IDs. For example, if your student IDs are 230501011, 230501033, 230501055, and 230501099 you can set the resistors 11, 33, 55, 99 and 23 or 10.11, 10.33, 10.55, 10.99 and 230.05. All possibilities will be accepted.). You can draw the diagram by hand or use any program. 10p Show the nodes and calculations according to current rule. 10p Show the loops and calculations according to voltage rule.
