Question 1 (20 marks) For the circuit shown in the following figure, with e(t) as the input voltage and i(t) as the outp

[answerhappygod]

Question 1 20 Marks For The Circuit Shown In The Following Figure With E T As The Input Voltage And I T As The Outp 1 (150.32 KiB) Viewed 18 times

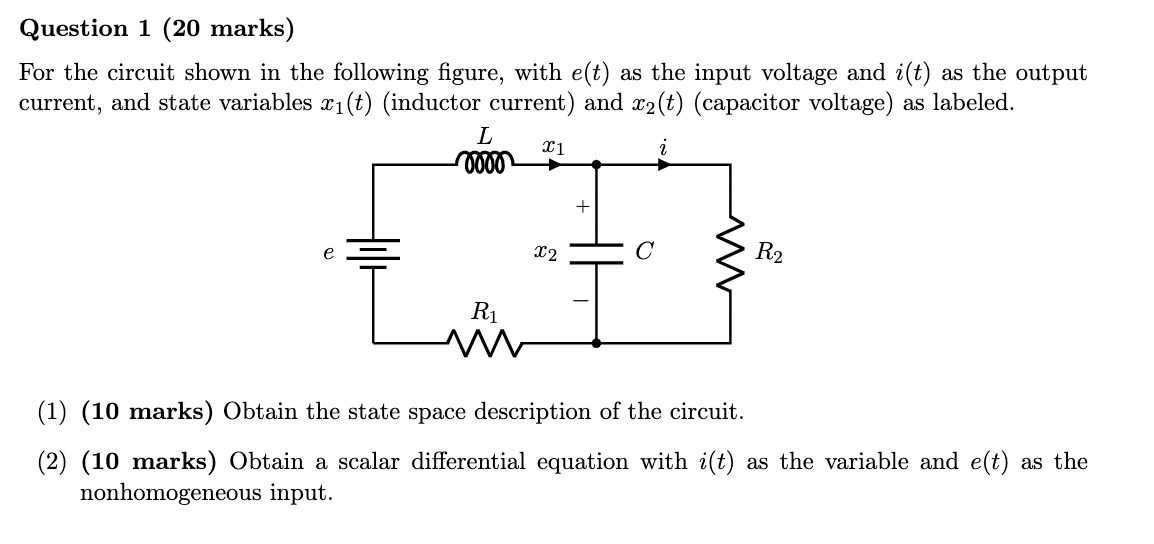

Question 1 (20 marks) For the circuit shown in the following figure, with e(t) as the input voltage and i(t) as the output current, and state variables xi(t) (inductor current) and x2(t) (capacitor voltage) as labeled. L 10000 21 + e Hill 22 С R2 R1 (1) (10 marks) Obtain the state space description of the circuit. (2) (10 marks) Obtain a scalar differential equation with i(t) as the variable and e(t) as the nonhomogeneous input.
