Design an ideal integrator (or PI) compensator for the system shown below. The compensator should be designed such that

Post by answerhappygod »

Design An Ideal Integrator Or Pi Compensator For The System Shown Below The Compensator Should Be Designed Such That 1
Design An Ideal Integrator Or Pi Compensator For The System Shown Below The Compensator Should Be Designed Such That 1 (26.19 KiB) Viewed 25 times

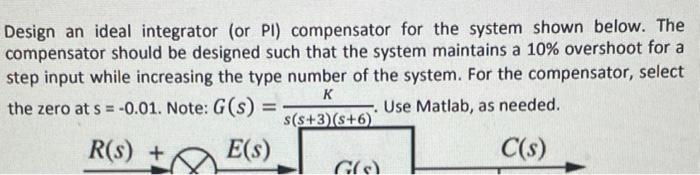

Design an ideal integrator (or PI) compensator for the system shown below. The compensator should be designed such that the system maintains a 10% overshoot for a step input while increasing the type number of the system. For the compensator, select the zero at s = -0.01. Note: G(S) = Use Matlab, as needed. s(s+3 8+6) R(S) + E(s) C(s) GOS K =
