Problem 1 The shaft of a propeller displayed in the figure below has a diameter d = 3000 mm and is subjected to a compre

Post by answerhappygod »

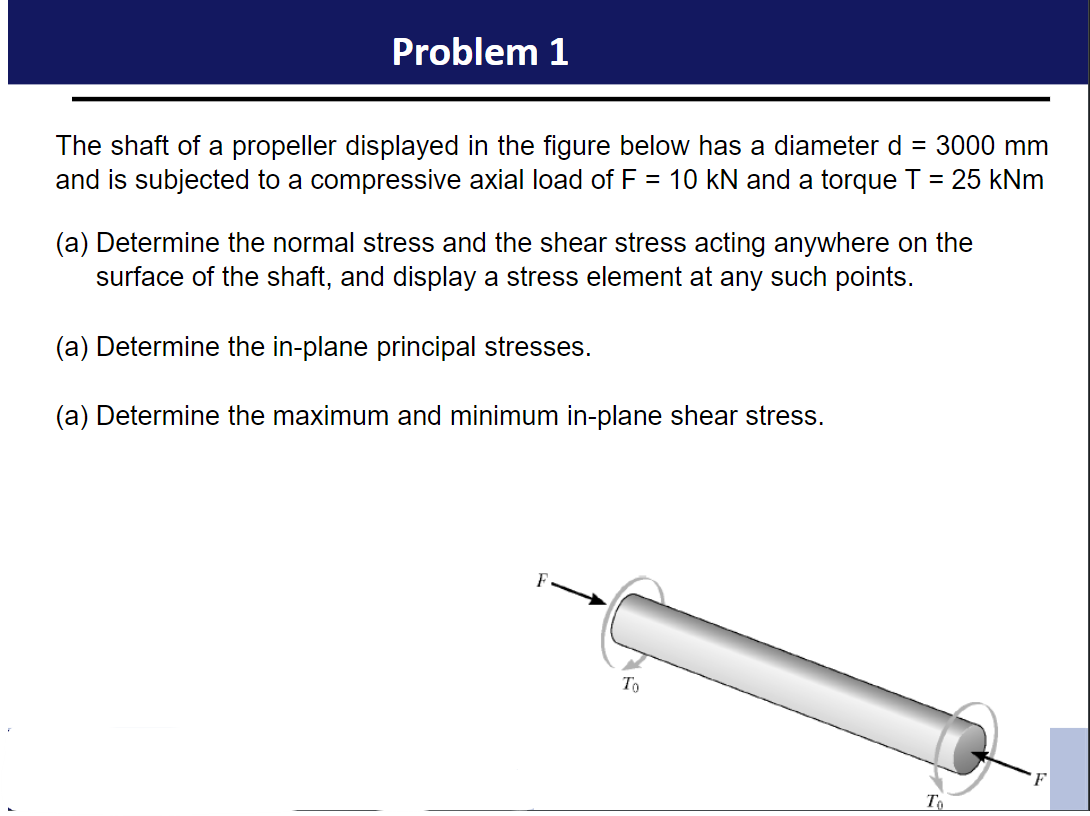

Problem 1 The Shaft Of A Propeller Displayed In The Figure Below Has A Diameter D 3000 Mm And Is Subjected To A Compre 1
Problem 1 The Shaft Of A Propeller Displayed In The Figure Below Has A Diameter D 3000 Mm And Is Subjected To A Compre 1 (79.52 KiB) Viewed 24 times
Problem 1 The shaft of a propeller displayed in the figure below has a diameter d = 3000 mm and is subjected to a compressive axial load of F = 10 kN and a torque T = 25 kNm = (a) Determine the normal stress and the shear stress acting anywhere on the surface of the shaft, and display a stress element at any such points. (a) Determine the in-plane principal stresses. (a) Determine the maximum and minimum in-plane shear stress. TO F ΤΟ
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
