to make a Matlab code. Thank you!

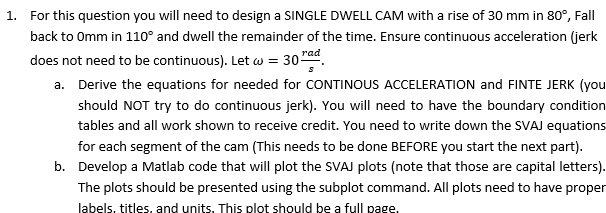

1. For this question you will need to design a SINGLE DWELL CAM with a rise of 30 mm in 80°, Fall back to Omm in 110° and dwell the remainder of the time. Ensure continuous acceleration (jerk does not need to be continuous). Let w = 30 rad a. Derive the equations for needed for CONTINOUS ACCELERATION and FINTE JERK (you should NOT try to do continuous jerk). You will need to have the boundary condition tables and all work shown to receive credit. You need to write down the SVA equations for each segment of the cam (This needs to be done BEFORE you start the next part). b. Develop a Matlab code that will plot the SVAJ plots (note that those are capital letters). The plots should be presented using the subplot command. All plots need to have proper labels, titles, and units. This plot should be a full page.
