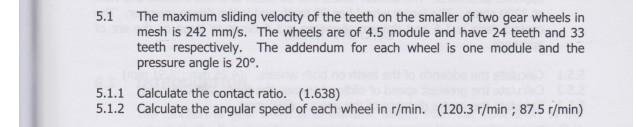

- 5 1 The Maximum Sliding Velocity Of The Teeth On The Smaller Of Two Gear Wheels In Mesh Is 242 Mm S The Wheels Are Of 4 1 (15.43 KiB) Viewed 24 times
5.1 The maximum sliding velocity of the teeth on the smaller of two gear wheels in mesh is 242 mm/s. The wheels are of 4
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
5.1 The maximum sliding velocity of the teeth on the smaller of two gear wheels in mesh is 242 mm/s. The wheels are of 4
5.1 The maximum sliding velocity of the teeth on the smaller of two gear wheels in mesh is 242 mm/s. The wheels are of 4.5 module and have 24 teeth and 33 teeth respectively. The addendum for each wheel is one module and the pressure angle is 20° 5.1.1 Calculate the contact ratio. (1.638) 5.1.2 Calculate the angular speed of each wheel in r/min. (120.3 r/min; 87.5 r/min)
