Welding (20 Marks) The figure below shows an example of a simple rig used to test an artisan's welding ability. Artisans

Post by answerhappygod »

Welding 20 Marks The Figure Below Shows An Example Of A Simple Rig Used To Test An Artisan S Welding Ability Artisans 1
Welding 20 Marks The Figure Below Shows An Example Of A Simple Rig Used To Test An Artisan S Welding Ability Artisans 1 (82.62 KiB) Viewed 26 times

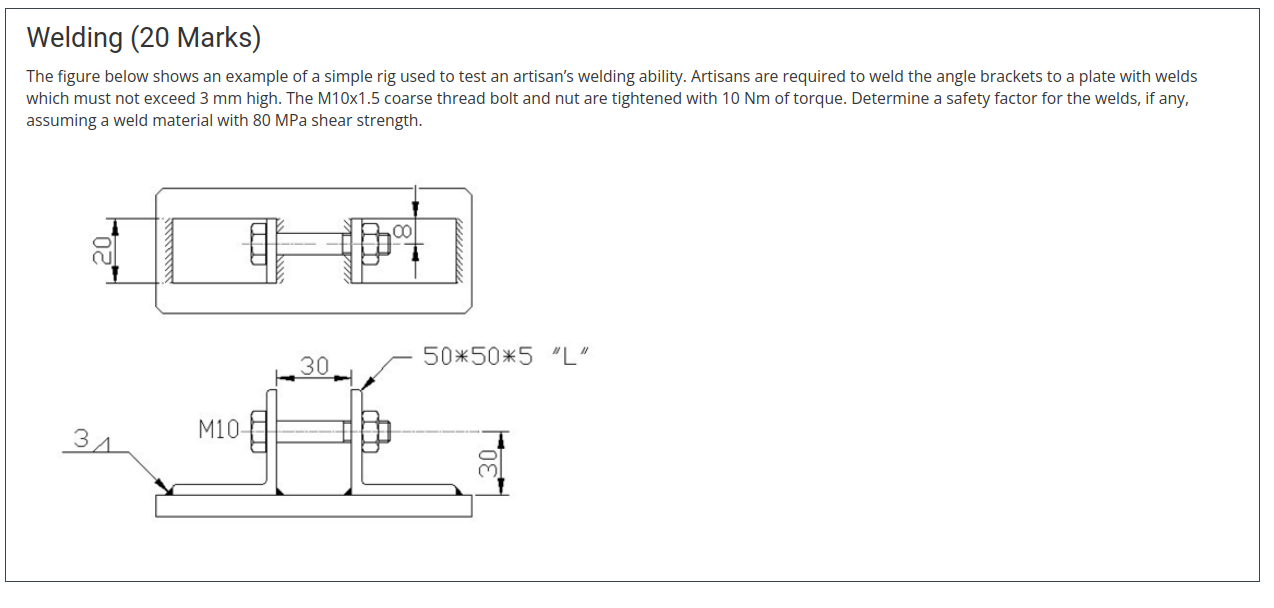

Welding (20 Marks) The figure below shows an example of a simple rig used to test an artisan's welding ability. Artisans are required to weld the angle brackets to a plate with welds which must not exceed 3 mm high. The M10x1.5 coarse thread bolt and nut are tightened with 10 Nm of torque. Determine a safety factor for the welds, if any, assuming a weld material with 80 MPa shear strength. 00 30 50*50*5 "L" M10 ULU W
