(b) The 60° V-belt of a machine is pass around the pulley A of a motor and over a pulley B as shown in Figure Q2 (b). Th

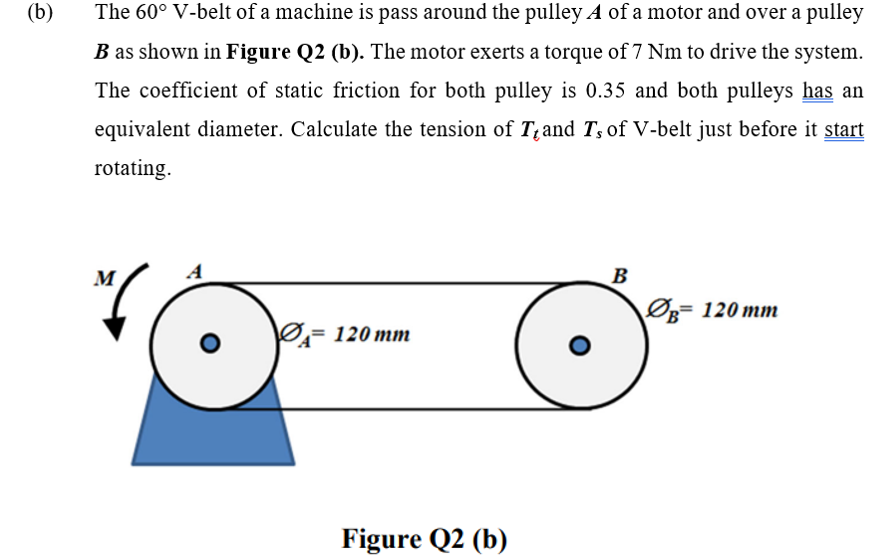

(b) The 60° V-belt of a machine is pass around the pulley A of a motor and over a pulley B as shown in Figure Q2 (b). The motor exerts a torque of 7 Nm to drive the system. a The coefficient of static friction for both pulley is 0.35 and both pulleys has an equivalent diameter. Calculate the tension of Tį and Ts of V-belt just before it start rotating. м. B ØR= 120 mm 0.2= 120 mm Figure Q2 (b)
