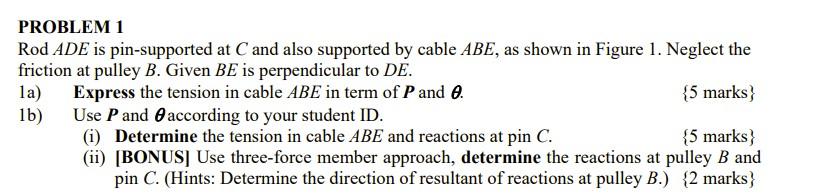

1a) PROBLEM 1 Rod ADE is pin-supported at C and also supported by cable ABE, as shown in Figure 1. Neglect the friction at pulley B. Given BE is perpendicular to DE. Express the tension in cable ABE in term of P and 0. {5 marks) 1b) Use P and according to your student ID. (1) Determine the tension in cable ABE and reactions at pin C. {5 marks) (ii) [BONUS) Use three-force member approach, determine the reactions at pulley B and pin C. (Hints: Determine the direction of resultant of reactions at pulley B.) {2 marks}
B E C D 10 2a P ka a Figure 1
