Evaluate the mode shapes of the system complete with the mode
shape diagram.
P=0, Q=0, R=4
- A Mass Spring System Is Shown In Figure Q2 With Mi 10 Kg M2 20 Kg Ki 10 P N M K2 10 Q N M And K3 20 2 (30.42 KiB) Viewed 31 times

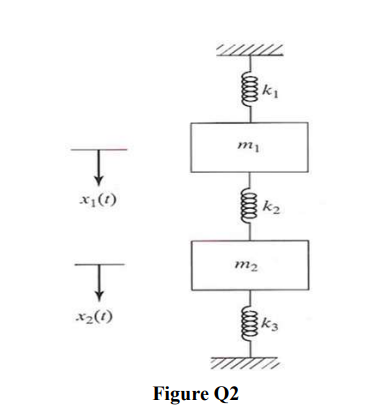

= A mass-spring system is shown in Figure Q2 with mı = 10 kg, m2 = 20 kg, ki = (10+P) N/m, k2 = (10+Q) N/m and k3 = (20+R) N/m.
ki mi T x1(1) k2 m2 1 X2(0) k3 Figure Q2
