S = 8
T = 1
50 +S = 58
15+T = 16
X = ?
Y = ?
z=?
- Unit Mmgs S 8 T 1 50 S 58 15 T 16 X Y Z 1 (90.34 KiB) Viewed 20 times

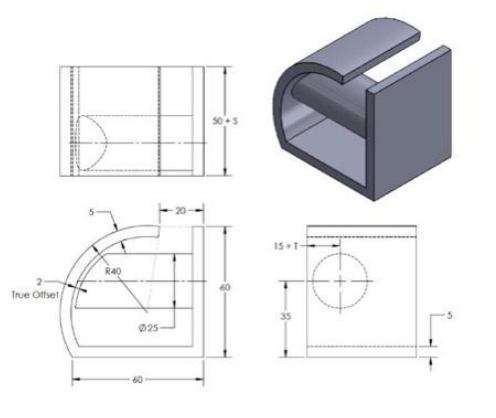

FRONT VIEW 5 20 R40 2 True Offset 60 025 60
Unit: MMGS S = 8 T = 1 50 +S = 58 15+T = 16 X = ? Y = ? z=?
-
