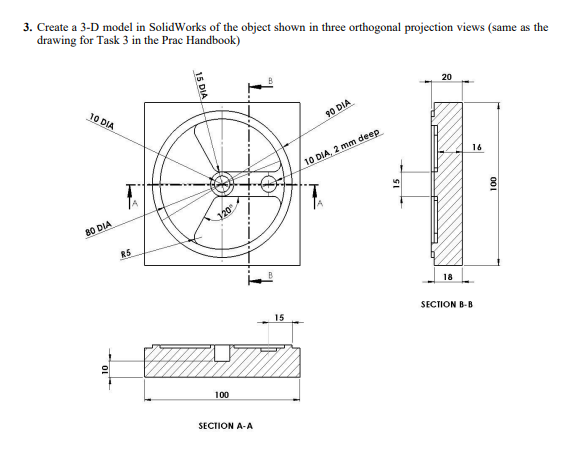

3. Create a 3-D model in SolidWorks of the object shown in three orthogonal projection views (same as the drawing for Task 3 in the Prac Handbook) 20 15 DIA 10 DIA 90 DIA 16 10 DIA, 2 mm deep 100 120 80 DIA RS 18 SECTION B-B 15 100 SECTION A-A
