QUESTION 2 (10 marks) Consider the case of a simply supported beam that is subjected to a concentrated force W which is

Post by answerhappygod »

Question 2 10 Marks Consider The Case Of A Simply Supported Beam That Is Subjected To A Concentrated Force W Which Is 1
Question 2 10 Marks Consider The Case Of A Simply Supported Beam That Is Subjected To A Concentrated Force W Which Is 1 (36.97 KiB) Viewed 18 times
advanced solid mechanics

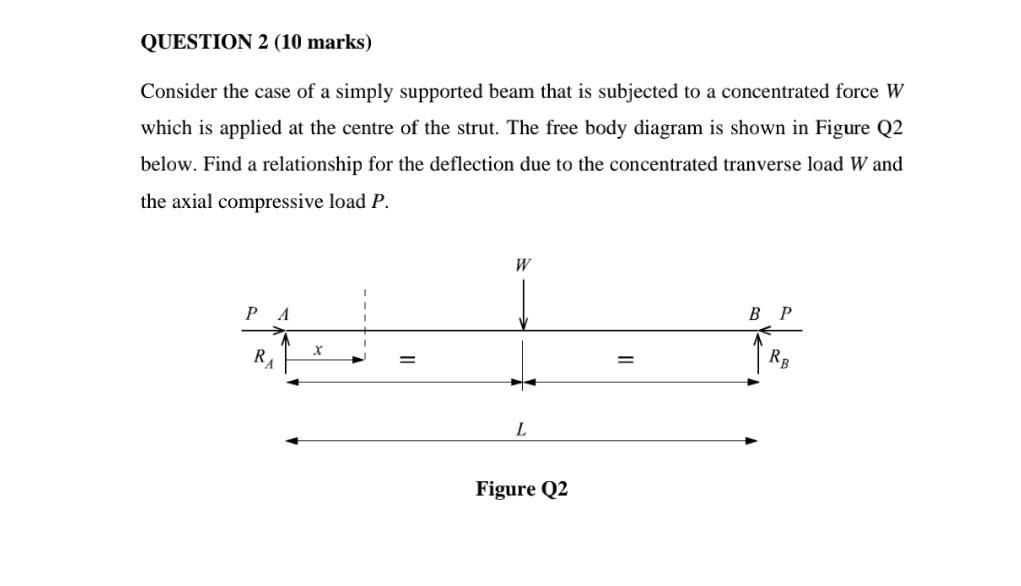

QUESTION 2 (10 marks) Consider the case of a simply supported beam that is subjected to a concentrated force W which is applied at the centre of the strut. The free body diagram is shown in Figure Q2 below. Find a relationship for the deflection due to the concentrated tranverse load Wand the axial compressive load P. и Р A B P X RA RR L Figure Q2
