Quantitative Problems 2.51 Use singularity functions for the force system shown in Sketch i to determine the load intens

[answerhappygod]

Quantitative Problems 2 51 Use Singularity Functions For The Force System Shown In Sketch I To Determine The Load Intens 1 (35.92 KiB) Viewed 21 times

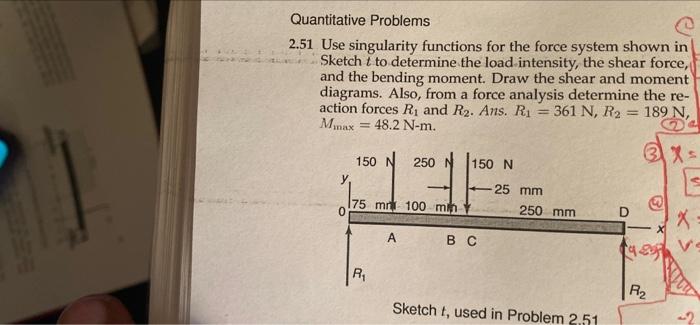

Quantitative Problems 2.51 Use singularity functions for the force system shown in Sketch i to determine the load intensity, the shear force, and the bending moment. Draw the shear and moment diagrams. Also, from a force analysis determine the re- action forces R, and R2. Ans. Ri 361 N, R2 = 189 N, Minax 48.2 N-m. 2X 150 250 150 N ? 1 175 mm 100 min 25 mm 250 mm D X А в с feesh V R R2 Sketch t, used in Problem 2.51
