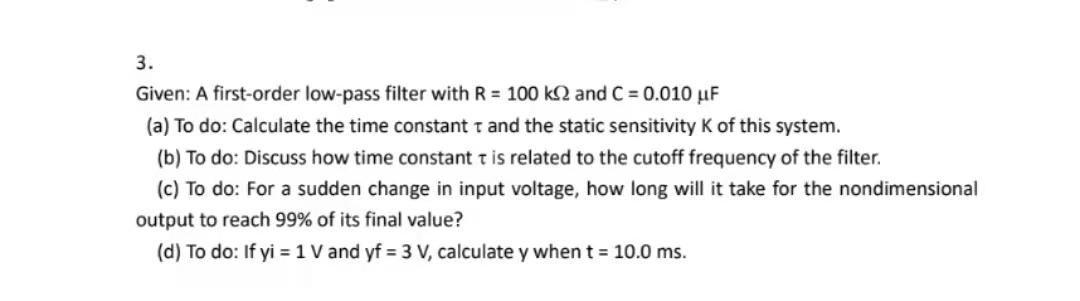

3. Given: A first-order low-pass filter with R = 100 k12 and C = 0.010 uF (a) To do: Calculate the time constant t and t
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. Given: A first-order low-pass filter with R = 100 k12 and C = 0.010 uF (a) To do: Calculate the time constant t and t
3. Given: A first-order low-pass filter with R = 100 k12 and C = 0.010 uF (a) To do: Calculate the time constant t and the static sensitivity K of this system. (b) To do: Discuss how time constant t is related to the cutoff frequency of the filter. (c) To do: For a sudden change in input voltage, how long will it take for the nondimensional output to reach 99% of its final value? (d) To do: If yi = 1 V and yf = 3 V, calculate y when t = 10.0 ms.
