2. The assembly shown below consists of two circular cross-sectioned rods pinned connect to the wall and to each other.

Post by answerhappygod »

2 The Assembly Shown Below Consists Of Two Circular Cross Sectioned Rods Pinned Connect To The Wall And To Each Other 1
2 The Assembly Shown Below Consists Of Two Circular Cross Sectioned Rods Pinned Connect To The Wall And To Each Other 1 (90.78 KiB) Viewed 22 times

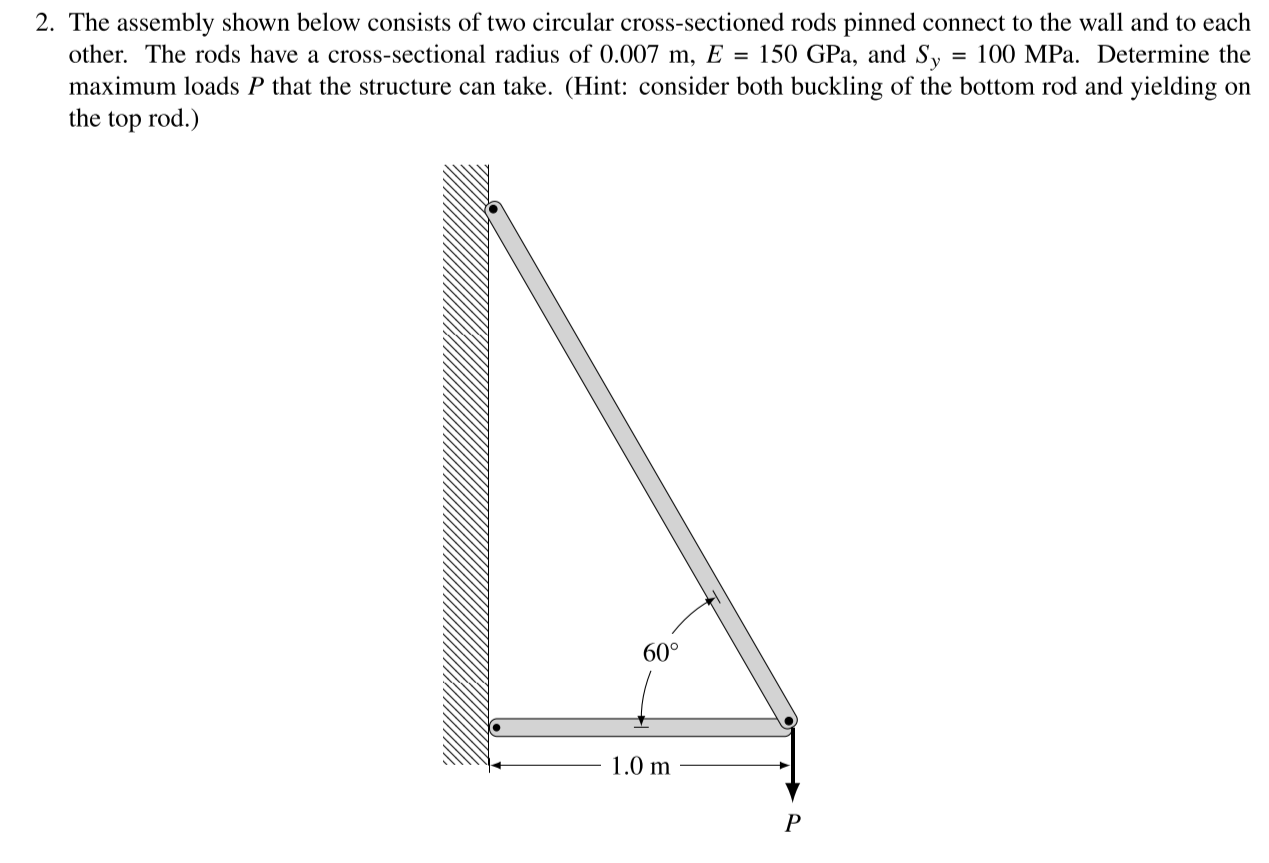

2. The assembly shown below consists of two circular cross-sectioned rods pinned connect to the wall and to each other. The rods have a cross-sectional radius of 0.007 m, E = 150 GPa, and Sy = 100 MPa. Determine the maximum loads P that the structure can take. (Hint: consider both buckling of the bottom rod and yielding on the top rod.) 60° 1.0 m Р
