The pipeline design shown in Figure 1 is a branch of 5 pipes
connected at junctions B and D with the main flow supply from Tank
A. The pipes are made of galvanized iron (𝜀 = 0.15 𝑚𝑚). take
Za=25m. evaluate the flow rates in pipes 1 through 5 taking
into consideration the friction factor. (Detailed equations used to
predict the flow rate.)

The Pipeline Design Shown In Figure 1 Is A Branch Of 5 Pipes Connected At Junctions B And D With The Main Flow Supply Fr 1 (19.39 KiB) Viewed 20 times

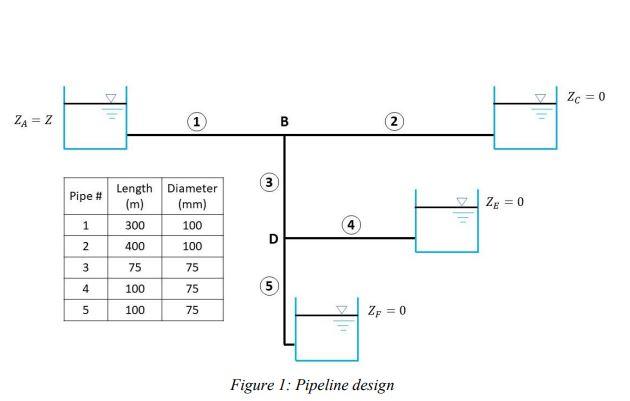

Zc = 0 11 11 ZA = 2 1 B 2 3 Pipe # (m) 2x = 0 Length Diameter (mm) 300 100 400 100 75 75 WR 1 D 3 5 N Uw 4 100 75 5 100 75 Zp = 0 Figure 1: Pipeline design
