- 1 For The Structure Given Below 0 3 H 31 31 21 H 0 5 Cm 0 3 Cm Rad 800 0 5 L 0 5 L K Kl A Draw The Bending Moment 1 (26.01 KiB) Viewed 23 times
1 For the structure given below; 0.3 h 31 31 21 h 0.5 cm 0.3 cm rad 800 0.5 L 0.5 L k * KL * a) Draw the bending moment
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1 For the structure given below; 0.3 h 31 31 21 h 0.5 cm 0.3 cm rad 800 0.5 L 0.5 L k * KL * a) Draw the bending moment

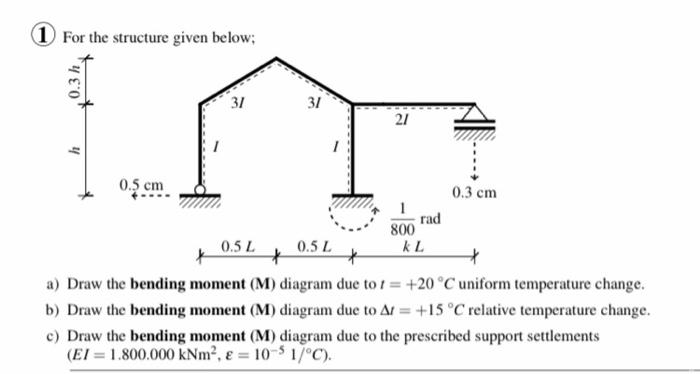

1 For the structure given below; 0.3 h 31 31 21 h 0.5 cm 0.3 cm rad 800 0.5 L 0.5 L k * KL * a) Draw the bending moment (M) diagram due to t = +20 °C uniform temperature change. b) Draw the bending moment (M) diagram due to A1 = +15 °C relative temperature change. c) Draw the bending moment (M) diagram due to the prescribed support settlements (EI = 1.800.000 kNm”. E = = 10-51/°C).
