Qestion 1 (section 10.3. Statically Indeterminate Beams) [25 points) Consider a fixed-end beam AB of a length "L" in Fig

Post by answerhappygod »

Qestion 1 Section 10 3 Statically Indeterminate Beams 25 Points Consider A Fixed End Beam Ab Of A Length L In Fig 1
Qestion 1 Section 10 3 Statically Indeterminate Beams 25 Points Consider A Fixed End Beam Ab Of A Length L In Fig 1 (71.11 KiB) Viewed 20 times
Please solve in detail step by step.

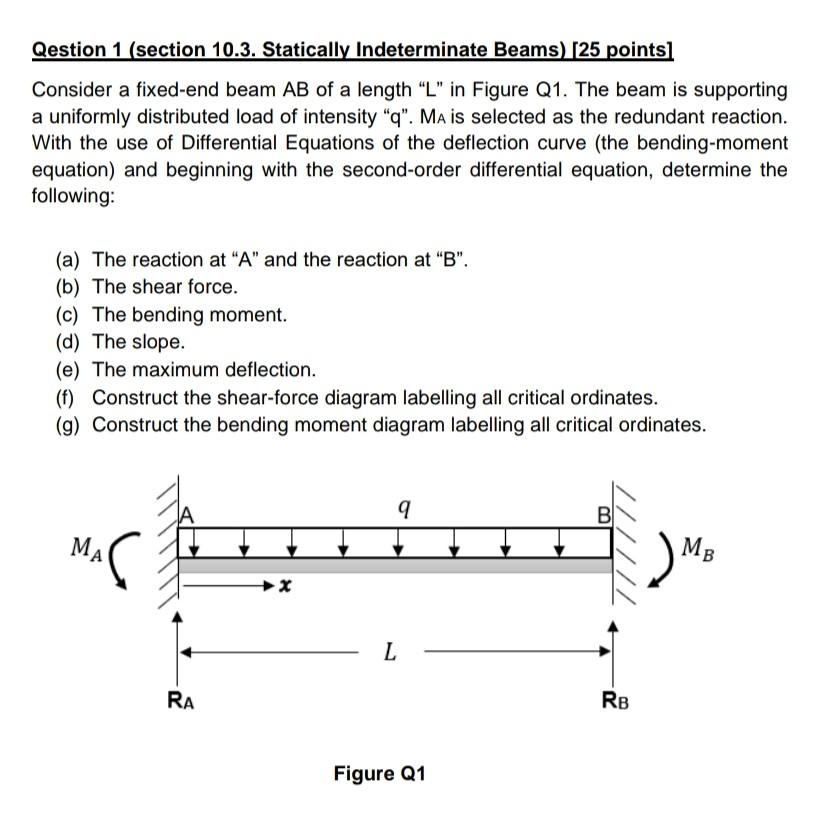

Qestion 1 (section 10.3. Statically Indeterminate Beams) [25 points) Consider a fixed-end beam AB of a length "L" in Figure Q1. The beam is supporting а a uniformly distributed load of intensity "q". Mais selected as the redundant reaction. With the use of Differential Equations of the deflection curve (the bending-moment equation) and beginning with the second-order differential equation, determine the following: (a) The reaction at "A" and the reaction at "B". (b) The shear force. (c) The bending moment. (d) The slope. (e) The maximum deflection. (1) Construct the shear-force diagram labelling all critical ordinates. (9) Construct the bending moment diagram labelling all critical ordinates. 9 B MA 2) Mo MB L- RA RB Figure Q1
