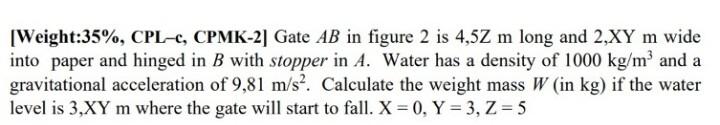

[Weight:35%, CPL-C, CPMK-2] Gate AB in figure 2 is 4,52 m long and 2,XY m wide into paper and hinged in B with stopper in A. Water has a density of 1000 kg/m and a gravitational acceleration of 9,81 m/s?. Calculate the weight mass W (in kg) if the water level is 3,XY m where the gate will start to fall. X=0, Y = 3, Z=5

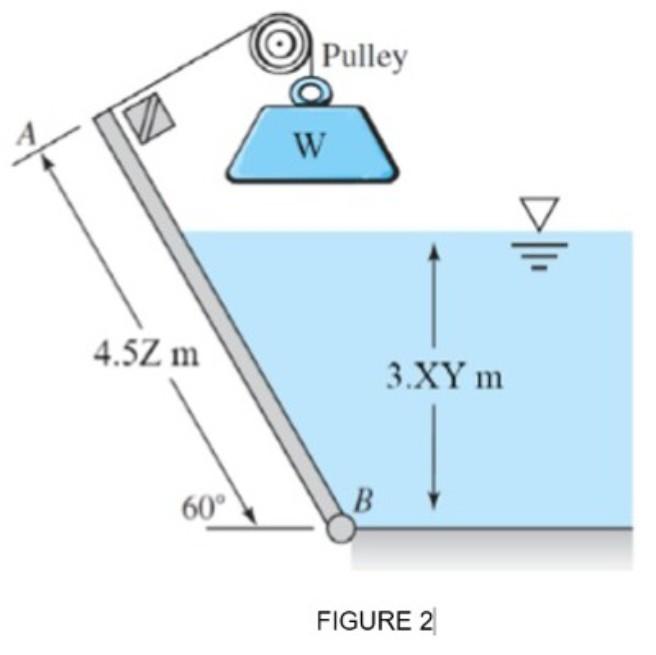

Pulley W 4.52 m 3.XYm 60° B FIGURE 2
