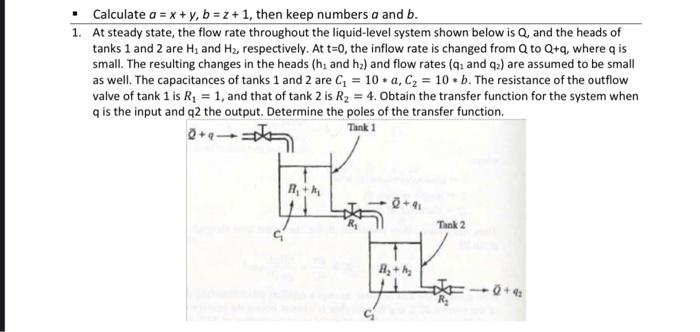

• Calculate a = x +y, b = 2+1, then keep numbers a and b. 1. At steady state, the flow rate throughout the liquid-level system shown below is Q, and the heads of tanks 1 and 2 are Hi and H2, respectively. At t=0, the inflow rate is changed from Q to Q+q, where q is small. The resulting changes in the heads (hy and hz) and flow rates (91 and 42) are assumed to be small as well. The capacitances of tanks 1 and 2 are C1 = 10 +a, C2 = 10 + b. The resistance of the outflow valve of tank 1 is Ry = 1, and that of tank 2 is R2 = 4. Obtain the transfer function for the system when g is the input and q2 the output. Determine the poles of the transfer function. Tank 1 R+ Thnk 2 H₂ + hy
