Question 1: A 17500-N (= 1750-kg) motor and plate, as shown, are in equilibrium and supported by three cables and d = 1.

[answerhappygod]

Question 1 A 17500 N 1750 Kg Motor And Plate As Shown Are In Equilibrium And Supported By Three Cables And D 1 1 (137.47 KiB) Viewed 16 times

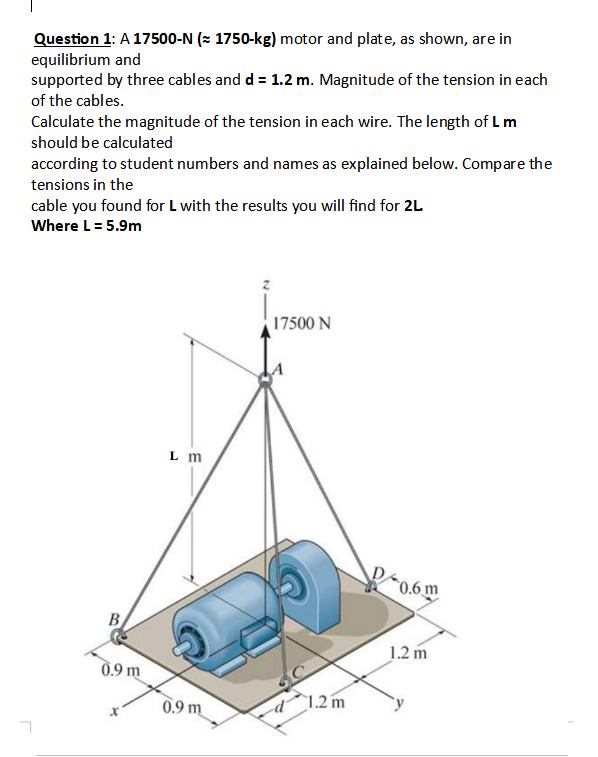

Question 1: A 17500-N (= 1750-kg) motor and plate, as shown, are in equilibrium and supported by three cables and d = 1.2 m. Magnitude of the tension in each of the cables. Calculate the magnitude of the tension in each wire. The length of Lm should be calculated according to student numbers and names as explained below. Compare the tensions in the cable you found for L with the results you will find for 2L Where L = 5.9m 17500 N Lm 0.6 m B) 1.2 m 0.9 m 0.9 m 1.2 m 그
